Joston SS316L Steam Bioactive PLC Control Panel of Automatic Multistage Liquid-Liquid Mixing Preparation System

Product Description

,

Product Description What is Solution Preparation System
Solution Preparation System can be used for the different fields ,like the pharmaceutical field which can be used in the low viscosity solution like infusion solution ,injection solution ,eye drop solution ,syrup solution ,oral liquid,vaccine,lotion etc ,in the cosmetic field ,it can be used for the cream ,ointment ,hand sterilizer etc ,for the food field ,it can be used for the juice process machine ,milk cooling tank ,beverage preparation etc .also can be used for the chemical field ,like the solvent blend -ethanol ,methanol ,acetone etc .
Solution Preparation System can be standardized and humanized according to the requirements of production process. In the mixing process, it can realize the feed control, discharge control, mixing control and other manual and automatic control.

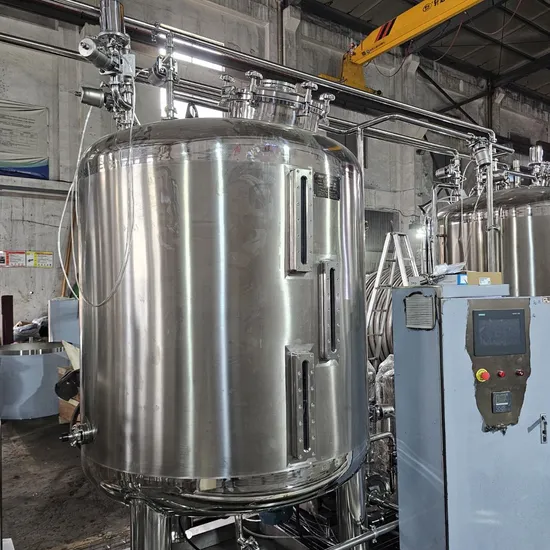

Solution Preparation System is composed of mixing tank body, upper and lower heads, agitator, support, transmission device, shaft seal device, etc. heating device or cooling device or metering device can also be configured according to process requirements.
Technical description

Model Item	PYG-50	PYG-200	PYG-1000	PYG-2000	PYG-5000
Tank work volume:L	50	200	1000	2000	5000
Motor power for high shear emulsifying:Kw	1.1	1.5	4.0	5.5	15.0
Agitator speed for high shear emulsifying : RPM	0-1440 OR 0-2900
Motor power propeller type agitator: KW	0.37	0.75	2.50	3.00	5.50
Agitator speed for propeller type agitator : RPM	0-150
Motor power anchor type agitator: KW	0.55	1.50	4.00	5.50	11.00
Agitator speed for anchor type agitator: RPM	0-45
Bottom magnetic type agitator: KW	0.18	1.50	2.20	3.00	5.50
Bottom magnetic type agitator Speed: RPM	0-350 ( for the gear motor connection type ),0-600 (for direct motor connection type )
Inside shell pressure: MPa	-0.1/0.3 (can be done as client's URS)
Jacket pressure: MPa	0.3 (can be done as client's URS)
Jacket heating medium	Steam/hot water
Jacket type	Single full/limpet coil/dimple jacket /inside coil tube

Company Profile
FAQ 1.How will your company control the equipment quality ?We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .2.Which kind payment do your company do now ?We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
3.Can we become your distributor in our country?Yes, we very welcome you! More details will be discussed if you are interested in being our agent.4.Do you supply installation equipment in oversea?Yes, if need, we can send our engineer to your plant to help you do installation and commission.
5.How can we know the order production status ?We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
6.what is kind service do you offer before making order ?1).according to your company URS ,we will make the design drawing accordingly.
2).after your company approved drawing ,we will make quotation.
3). final we make agreement on payment terms ,delivery time ,package ,shipment etc.

---
