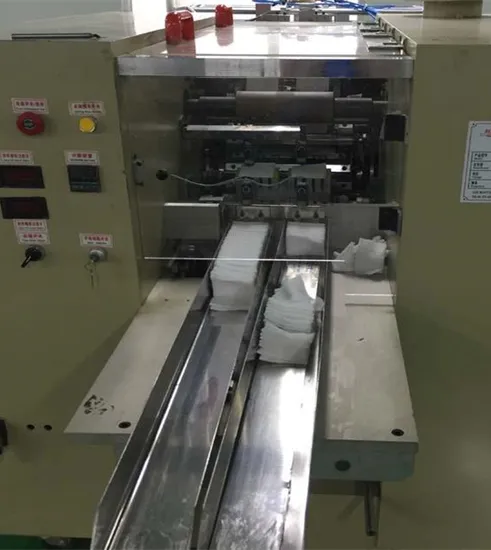

High Speed Surgical Gauze Swab Folding Machine

Product Description

High Speed Surgical Gauze Compress Folding Machine
Video: https://youtu.be/MlJgCN8cV24
Features of the machine
1.Newest system with the speed adjustment unit
2.Equiped with electric eyes to ensure accurate folding size
3.Automatic stop when there is no gauze or defect folding
4.Equiped with arlarm device
5.Equiped with water spray device to moistening the gauze
6.Automatic counting function and counter preset
7.American folding with edge folded
8.Higher production capacity compare with traditional folding machine
9.Various sizes available: 5x5cm, 7.5x7.5cm and 10x10cm
10.Can fold 8, 12 and 16 ply on the same machine

Specification:

Model No.	GF-50	GF-75	GF-100
Product size	5X5 cm	7.5X7.5 cm	10X10 cm
Available layer	8, 12, 16	8, 12, 16	8, 12, 16
Capacity	200 pcs/min	180 pcs/min	145 pcs/min
Speed	56 m/min	66 m/min	76 m/min
Automatic counting	Yes	Yes	Yes
Max roll diameter	∮1000mm	∮1000mm	∮1000mm
Power consumption	6KW	8KW	10 KW
Frequency	50Hz	50Hz	50Hz
Power supply	AC 380V	AC 380V	AC 380V
Air supply	0.6 Mpa	0.6 Mpa	0.6 Mpa
Water pressure	0.2 Mpa	0.2 Mpa	0.2 Mpa
Machine size	3000*1400*1350mm	3200*1550*1400mm	3300*1750*1450mm
Gross weight	1500kg	1900kg	2300kg

Our Service♥ ⇒One year guarantee for whole machine, all life follow-up service.
⇒24 hours technical support by email.
⇒Technicians overseas set-up and workers training.
⇒User- friendly English for operation system.
Packing & Delivery♥
Packaging Details:Stretching film packing
Delivery Detail:Shipped in 30 days after payment
THE PACKING IS SEAWORTHY AND SAFE.
Exhibition♥


Q1: What is the warranty for the machine?A1: For the machine,we offer one year warranty.If any quality problems occurred under normal condition during this period ,we will take on the costs of maintenance and replacement and other related cost.
Q2: How to operate and maintain the machine?A2: First, we will provide a professional and detailed manual to you with the machine; Second, we will test and debug the machine into the best condition before shipment for you. Last but not least, we also provide abroad technical training service and online expertise consulting.
Q3: How to get raw material or auxiliary material for the machine?A3: Our company has over10 years experience in this industry, we have accumulated various contact information of upstream&downstream firms in fields of raw material,auxiliary material and package for the products. We believe that our professional team can always offer you the best solutions.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with favorable price if it is out of the warranty.

---
