698-2700MHz Indoor Omni Ceiling Antenna N Female Type Bts Antenna Mnaufacturer

Product Description

Products Description

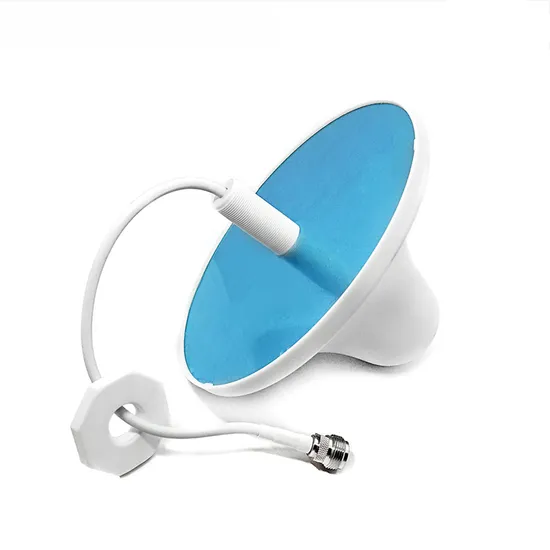

698-2700MHz Indoor Omni Antenna(698-2700MHz, N Female)
Omni ceiling antenna is a kind of mobile communication system antenna, mainly used for indoor signal coverage. For outdoor signal coverage, plate antennas are used, with high power, strong signal and long coverage. Relatively speaking, indoor coverage, such as conference venues, hotels, office buildings, cinemas, residential buildings, etc., need to be covered by indoor distributed systems, and small ceiling-mounted antennas are used. The appearance is more beautiful and does not affect indoor viewing. It has low power and coverage. Just one floor.
Topwave 698-2700MHz Omni Ceiling Antenna is a good choice for indoor coverage, check the specs and contact us for inquiry!

Electrical & Mechanical Specifications

Electrical Specifications
Model No.	TPW-727-5OCA-NF
Frequency Range(MHz)	698-960	1710-2700
Bandwidth(MHz)	262	990
Gain(dBi)	3	5
VSWR	≤1.5
Polarization	Vertical
Horizontal Beamwidth	360°
Vertical Beamwidth	65°
Input Impedance	50 Ω
Max. Input Power	100 W
Lightning Protection	DC Ground
Mechanical Specifications
Connector	N Female
Dimensions	Φ160×90mm
Weight(kg)	0.22 (approx)
Color	White
Reflector Material	Aluminum
Radome Material	ABS (UV Stabilized)
Operational Humidity	< 95%
Operating Temperature	-40°C to +65 °C

Related Product

5g Indoor 698-2700MHz 380-520MHz High Gain UHF Outdoor 698-960/1710-4000MHz High Gain
N Female Omni Ceiling Mount Antenna Panel RFID Antenna for Cellular Base Station Omni Ceiling Antenna for Indoor Signal Booster

About Us

Hefei Topwave Telecom Co.,Ltd, is a worldwide leading provider of comprehensive RF passive equipment and high-performance wireless infrastructure solutions focused on innovation and differentiation at the edge of wireless telecommunication networks.
Topwave Telecom established in 2007, located in Hefei National High-tech Zone. With the decades of development, we have our own R&D center and manufacturer center.We are OEM and ODM service provider and network operators to improve performance and reduce operating expenses via comprehensive set of products and solutions. Topwave has more than 10 years experience to export goods to all over the world, the RF passive devices like power splitter, coupler, filter, multiband combiner etc, which widely used for DAS, IBS, BTS and BDA.
Topwave persist to provide excellent products and service for every client as always. Our mission is to make the world connected, make the world small, and make the world smart. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.

Main Products

Application

Packing Details

Testing Equipment

FAQ

Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.
Q: What is your MOQ?
A: We don't have MOQ limit.
Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.
Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.

---
