Small Footprint Volute Type Screw Press Automatic Sludge Dewatering Press for Beverage Industry Waste Water Treatment

Product Description

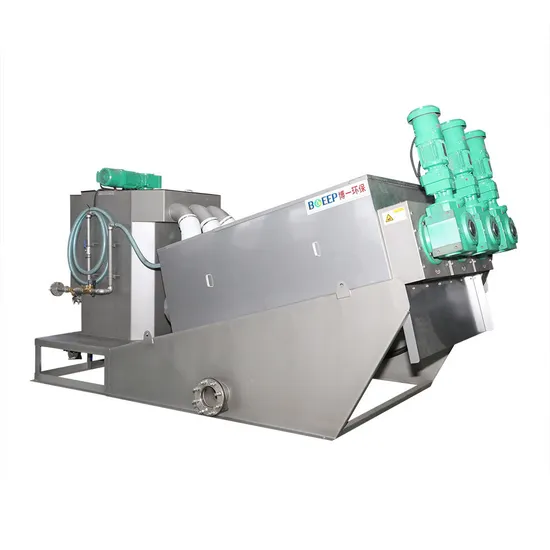

Products Description BOEEP volute screw press sludge dehydratering machine which uses the screw extrusion priciple is a new type of solide-liquid separation device. It reaches the goal of extrusion dewatering sludge by the powerful extrusion pressure of changing the screw diameter and distance along with the tiny spacing between moveable and fixed annular plates. 1-Low energy consumption.
2-Minimal water consumption.
3-Minimal noise.
4-Low polymer consumption.
5-No need for proceeding sludge thickening.
6-Suitable for any type of sludge even suitable for dewatering oil/grease rich sludge.
7-Minimal maintenance and operational cost.
8-Capable for working 24/7. Model Choice

Model	DS Sludge Treating Capacity	Sludge Flow Treating Capacity
				10000mg/L	20000mg/L	30000mg/L	40000mg/L	50000mg/L
MYDL101	3-6kg/h	~0.3m3/h	~0.15m3/h	~0.13m3/h	~0.125m3/h	~0.12m3/h
MYDL131	6-12kg/h	~0.6m3/h	~0.3m3/h	~0.26m3/h	~0.25m3/h	~0.24m3/h
MYDL201	9-18kg/h	~0.9m3/h	~0.6m3/h	~0.5m3/h	~0.4m3/h	~0.36m3/h
MYDL202	18-36kg/h	~1.8m3/h	~1.2m3/h	~1m3/h	~0.8m3/h	~0.72m3/h
MYDL301	40-60kg/h	~4m3/h	~2.5m3/h	~2m3/h	~1.5m3/h	~1.2m3/h
MYDL302	80-120kg/h	~8m3/h	~5m3/h	~4m3/h	~3m3/h	~2.4m3/h
MYDL303	120-180kg/h	~12m3/h	~7.5m3/h	~6m3/h	~4.5m3/h	~3.6m3/h
MYDL304	160-240kg/h	~16m3/h	~10m3/h	~8m3/h	~6m3/h	~4.8m3/h
MYDL351	80-120kg/h	~8m3/h	~4m3/h	~3.5m3/h	~3m3/h	~2.4m3/h
MYDL352	160-240kg/h	~16m3/h	~8m3/h	~7m3/h	~6m3/h	~4.8m3/h
MYDL353	240-360kg/h	~24m3/h	~12m3/h	~10.5m3/h	~9m3/h	~7.2m3/h
MYDL354	320-480kg/h	~32m3/h	~16m3/h	~14m3/h	~12m3/h	~9.6m3/h
MYDL401	120-160kg/h	~12m3/h	~6m3/h	~5m3/h	~4m3/h	~3.2m3/h
MYDL402	240-320kg/h	~24m3/h	~12m3/h	~10m3/h	~8m3/h	~6.4m3/h
MYDL403	360-480kg/h	~36m3/h	~18m3/h	~15m3/h	~12m3/h	~9.6m3/h
MYDL404	480-640kg/h	~48m3/h	~24m3/h	~20m3/h	~16m3/h	~12.8m3/h

Our Highlight Production Site Project Site Package

---
