Mst Pid 0-20 Ppm Gas Detector IR Gas Sensor Photoionization Tvoc Gas Analyzer
US$298.50
1-9 pieces
US$283.60
10+ pieces
Basic Info.
Model NO.
MST/PID-TVOC
Output Signal Type
-
Production Process
-
Material
ABS
IP Rating
-
Sensitivity
High
Certification
-
Customized
Customized
Lamp Life
10000h
Packaging Type
Industrial Standard
Output
0.045 V-2.5 V (Linear)
Warm up Time
1 Min
Supply Voltage
3.2 V- 5.5 VDC
Power Consumption
90 MW -250 MW
Current
30 Ma -45 Ma
Customized Support
OEM
Weight
< 22 G
Transport Package
Cartons
Specification
0-20 ppm
Trademark
Maiya Sensor Tech
Origin
China
HS Code
902710090
Production Capacity
200 Box/Boxes Per Month
Packaging & Delivery
Package Size
20.00cm * 15.00cm * 10.00cm
Package Gross Weight
0.500kg
Product Description

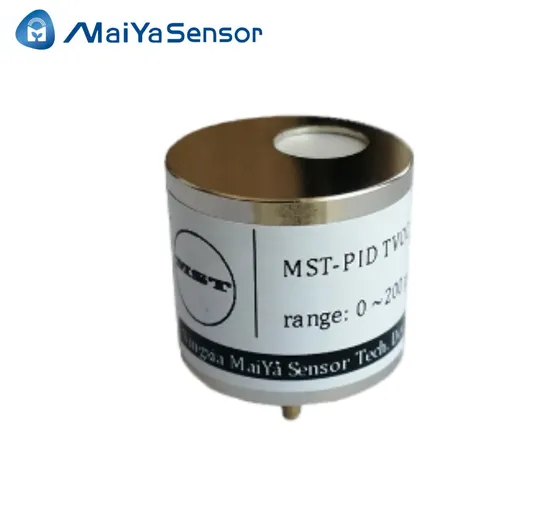

Product Description The MST PID-TVOC sensor is a detector base photoionization detection.It can be easily installed onto handheld/portable/online VOC monitoring in struments(for example,handheld TVOC monitors),and is good to use around fenceline,EXarea,etc.Due to the safety of the PID, it is very easy tobe integrated in other system,whileconsiderably reducing the R&D cost.The mechanism is that the gas molecules with ionization potential than the ionization energy of the UV lamp will be detected,such as some VOCs.When pass through the UV channel,these gas molecules are ionized generating electrical signals,followed by being converted to concentrations values.
