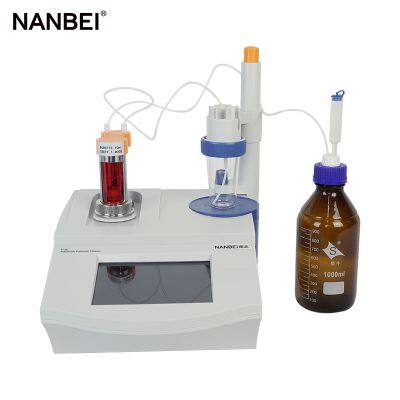

Ti-50 Digital Laboratory Automatic Potential Titrator
Integrated automatic laboratory analyzer potentiometric titrator
Ti-50 Potentiometric Titrator is a top integrated automatic laboratory analyzer to meet exacting titration demands.
This titration is capable of all common titration types and offers high accuracy measurement and results data
management.
Standard Package
10ml Burette, Platinum Electrode, Silver Electrode, PH Electrode (indicator), Single Bridge Reference Electrode,
Double Bridge Reference Electrode, ATC Probe, pH Buffer Powders (4.01, 7.00, 10.01)
OPTIONAL ACCESSORIES
20ml Burette, Auxiliary Burette Driver, Anti-diffusion Capillary
Features
7” colorful touchscreen and smart guide system.
Titration methods, curves and results are displayed in detail.
1 extra burette driver can be installed (optional).
Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
Intelligent operation system provides features including user management, method management, Electrode
management, titrant management, data management, etc.
Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence
point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
pH calibration and measurement are supported.
Up to 100 user-defined methods and 10 user-defined shortcuts.
Auto calculation with pre-defined formula.
Store up to 200 titration data sets (GLP-compliant).
Data analysis feature helps user review, compare and recalculate result
Data can be easily transferred to printer via RS-232 communication interface.
Titrator can be controlled by computer via USB or RS-232 communication interface.
Automatic sampler is supported.
Specifications
Model
| Ti-50
|
Burette
| Repeatability
| 0.20%
|
Accuracy
| 10ml Burette: ±0.025ml;20ml Burette: ±0.035ml
|
Resolution
| 10ml Burette: 1/20000;20ml Burette: 1/10000
|
Mechanical Unit
| Resolution
| 1/30000
|
Charging speed
| (55±10) s (Full burette)
|
Measuring Unit
| Range
| (-1999.0～1999.0) mv,( 57585007,0.00～14.00)pH
|
Resolutions
| 0.1mV, 0.01pH
|
Accuracy
| pH: ±0.01pH mv: ±0.03%FS
|
Fluctuation
| (±0.3mV±1bit) /3h
|
Temp. Compensation
| Range
| (-5.0～105.0) ℃
|
Resolutions
| 0.1 ℃
|
Accuracy
| ±0.3 ℃
|
General
| Power Supply
| AC (220±22) V; (50±1) Hz
|
Dimension (mm)& Weight (kg)
| 340*400*400; 10
|
