US$40,000.00
|
25,000 Pieces
(MOQ)
|
Basic Info.
Certification
ISO9001, CCC
Wheel Base
7000+1350+1350mm
Types of Suspension Systems
Cross Arm Type
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Compartments
1 to 7 in Optional
Tank Thickness
Endplate 7mm; Body 6mm
Axles
Fuwa 3-Axles (BPW in Optional)
Suspension
Spring Type(Air-Bag Type in Optional )
Vapour Recovery System
Included
Transport Package
Bulk Shipping or Roro
Specification
12300x2490x3700mm
Production Capacity
350 Units/Month
Product Description

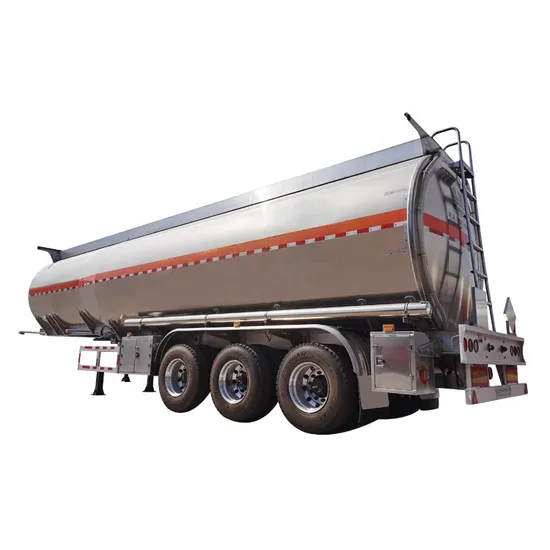

I. Description of 6 compartments 45000L 3-axles Aluminium Fuel Tanker
The steel fuel tanker can be divided into 1 to 7 compartments to transport different fuels such as diesel and petrol.
With optimized design, high strength, wear well and light weight, the allowable load weight of the tanker reaches 33000kg.
The tank fittings (manhole, vapour recovery, overfill sensor, bottom valve, discharge valves, etc) adopts Euro Standard to
guarantee good quality and long service life.
II. Description of 6 compartments 45000L 3-axles Aluminium Fuel Tanker
| ItemsParameters | Parameters |
| General | Product | 45000L 3-Axles Alluminum Fuel Tanker with optional compartments |
| Medium | Petrol or Diesel |
| Dimension | 12300x2500x3750mm |
| Net Weight | 6700kg |
| Loading Weight | 35000kg |
| Tank Body | Volume | 45000L/ 45CBM |
| Material | Aluminium(Steel in optional) |
| Thickness | Endplate 7mm; body 6mm |
| Welding | Robot Welding |
| Tank Fittings | Manhole | Euro Standard, 1 pcs each compartment |
| Breather Valve | Euro Standard, 1 pcs each compartment |
| Overfill Sensor | Euro Standard, 1 pcs each compartment |
| Vapour Recovery | Euro Standard, 1 pcs each compartment |
| Bottom Valve | Euro Standard, 1 pcs each compartment |
| Discharge Valve | Euro Standard, 1 pcs each compartment |
| Emergency Cut-off device | included |
| Anti static coil | included |
| Chassis | Main beam | Heavy duty and extra durability designed; Opting for high tensile steel Q345,welded by automatic Submerged-Arc processes |
| Axle | FUWA 3-axles (BPW in optional) |
| Suspension | Spring type (Air-bag type in optional) |
| Landing Legs | JOST 28Tons |
| ABS | WABCO 4S2M |
| Kingpin | 2'' or 3.5'' |
| Tires | TRIANGLE 12/R22.5, 12 pcs (6pcs in optional) |
| Others | Ladder | included |
| Spare tire carrier | included |
| Tool box | included |
| Fire extinguisher | included |
| Lights | LED lights |
