Product Description:

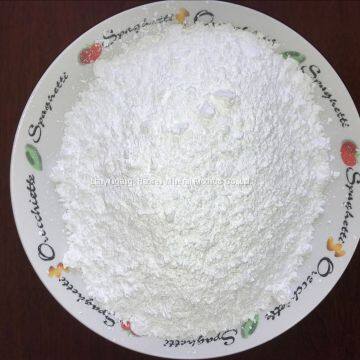

The fused silica powder is made of natural high-quality quartz, which is melted by high temperature and the amorphous silicon dioxide after cooling is used as the main material, and then processed by unique technology. The product has high purity, low thermal expansion coefficient, low internal stress, high moisture resistance and low radioactivity. As a plastic sealing material for enclosed integrated circuits, it has the outstanding advantages of good dynamic performance, less spills/spillage and large filling capacity.
Company Information
Hao Sen uses high-quality quartz - water washing - drying - drying - mixing - compound / melting - dry ball milling - classifier grading - impurity / complex mixing - packing, warehousing and other advanced production processes. At present, more than 30 kinds of silica micro-powder products, such as crystalline silica micro-powder, fused silica micro-powder, active (modified) silica micro-powder, high purity silica micro-powder, soft composite silica micro-powder, electronic silica micro-powder, electrical silica micro-powder, ultra-fine silica micro-powder, spherical silica micro-powder, glass powder, quartz powder, high purity quartz sand and fused silica sand, have been developed and manufactured, which are oriented to adhesives, electronic materials, fused silica micro-powder and so on. Electrical insulating materials, liquid crystal glass, medical materials, dental materials, precision casting, paint coating, functional rubber, plastics, chemical materials, nanometer materials, advanced building materials and other hundreds of different industries. Product Marketing covers more than 20 provinces and regions in the country, as well as exported to Asia, Europe, the United States, Africa and other countries.
Lianyungang Hao Sen has strong technical strength, advanced testing instruments, and improve the pre-sale, sale, after-sales service system. Always adhere to the idea that "quality is the life of enterprises and innovation is the soul of enterprises". Relying on rich quartz mineral resources, we are committed to becoming the leading supplier of industrial powder materials application programs and strive to provide customers with the best quality products and services.
HS MINE HS MINERAL Technical Data Sheet
Item
| Unit
| Standard Scope
| Typical Values
|
Appearance
| -
| White powder
| 1500mesh
|
Amorphous SiO2
| %
| 99-99.9%
| 99.6
|
Mean Grain size
| µm
| 2-25
| 5.584
|
Whiteness
| %
| 92-98
| 96
|
Fe2O3
| %
| ≤0.03
| 0.008
|
Conductivity
| Us/cm
| 1-30
| 3.2
|
PH Value
|
| 6.5-8.0
| 7.2
|
Moisture
| %
| 0.05-0.1
| 0.06
|
BET(SSA)
| ㎡/kg
| 1700-8000
| 7212
|
Density
| g/cm3
| 2.2
| 2.2
|
Moh's hardness
|
| 6
| 6
|
Inductivity
| 1MHz
| 3.88
| 3.88
|
Linear expansion coefficient
| 1/K
| 0.5×10-6
| 0.5×10-6
|
Thermal conductivity
| W/K·m
| 1.1
| 1.1
|
HS Mineral can produce 400-6000 mesh products with different specifications according to customer requirements.
|
Main Features:
1. Extremely low linear expansion coefficient and low internal stress.
2. High purity, good whiteness and uniform particle size distribution.
3. Good electromagnetic radiation.
4. Low ion content, low conductivity, excellent electrical insulation.
5. Stable chemical properties and high moisture resistance.
6. Good acid and alkali resistance, high temperature resistance and insulation performance.
Application:
Fused silica powder is widely used in electronic packaging, investment casting, high-grade electrical insulation, paint and coatings, silicone rubber, refractories, high-grade plastics, special ceramics and other industries.
>>
