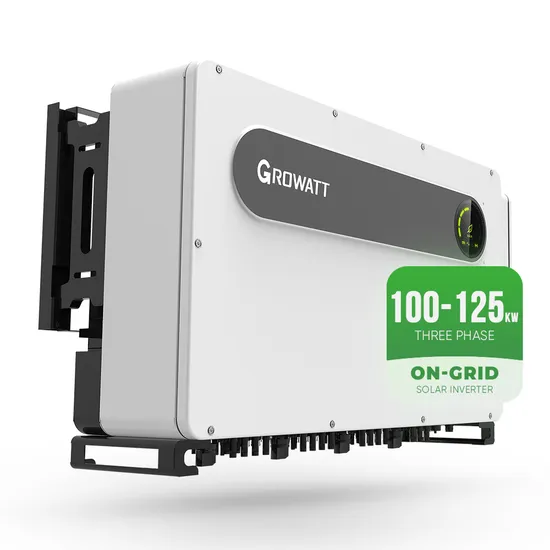

Growatt Grid Tie Inverter 230V 400V 100kw 120kw 125kw 3 Phase Ongrid Solar Inverter

US$3,250.00
1-9 Pieces
US$3,050.00
10-49 Pieces
US$2,850.00
50+ Pieces

Basic Info.

Model NO.
MAX 100-125KWKTL3-X-LV
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
100kw-125kw
Certification
CE, ROHS, ISO9001, TUV
Brand
Growatt
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Output Voltage
230V/400V
Output Frequency
50/60Hz
Maximum Efficiency
99.99%
Working Temperature Range
-45~60ºC
Transport Package
Package with Pallet
Specification
970/640/345mm
Trademark
Growatt
Origin
China
HS Code
8504403090
Production Capacity
500PCS/Day

Packaging & Delivery

Package Size
105.00cm * 75.00cm * 50.00cm
Package Gross Weight
100.000kg

Product Description

Product Description
DatasheetMAX 100KTL3-X LVMAX 110KTL3-X LVMAX 120KTL3-X LVMAX 125KTL3-X LV
AC nominal power100000W110000W120000W125000W
Nominal AC voltage(range*)230V/400V(340-440VAC)
AC grid frequency(range*)50/60 Hz(45~55Hz/55-65 Hz)
AC grid connection type3W/N/PE
MPP voltage range180V-1000V
No. of MPP trackers10
No. of PV strings per MPP tracker2

Comprehensive Growatt SolutionOn Grid Residential Inverter3-15KW 2 MPPTsThree Phase 380-415V 50/6HzOn Grid Commercial Inverter15-40KW 3/4 MPPTsThree Phase 380-415V 50/6HzOn Grid Commercial Inverter15-40KW 3/4 MPPTsThree Phase 380-415V 50/6HzOn Grid Commercial Inverter50-250KW 6-10 MPPTsThree Phase 380-415V/460-500V 50/6HzHybrid Residential Inverter3-12KW Single Phase3-6KW Single Phase4-12KW Three PhaseOff Grid Residential Inverter2-5KWSingle Phase 220-240V 50/60HzBattery Voltage 24V/48V
