Surface Grinding Machine CNC Grinder Knife Sharpening Machine for Blade Surface

Product Description

Overview

Product Description

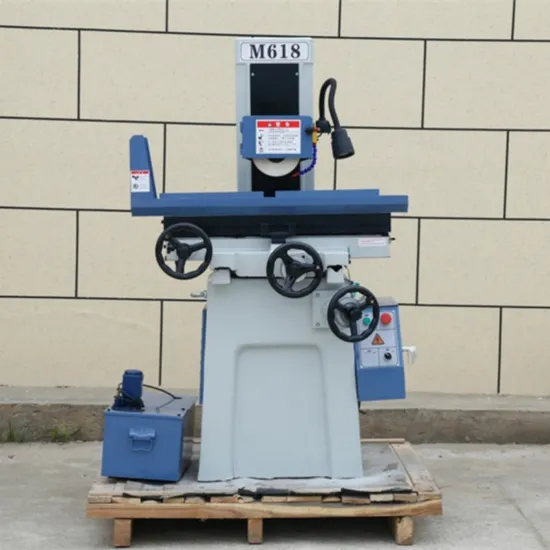

M618 hand-cranked precision surface grinder adopts cross-plate movable type, large span and high thickness symmetrical plate structure, small thermal deformation, stable movement, low noise, good precision retention. This machine has the characteristics of compact structure, convenient operation, stable and reliable performance, good rigidity, high precision, easy maintenance, small footprint, etc. It can grind various planes and inclined surfaces. This machine is suitable for small molds, daily hardware, instruments, meters, clocks, zippers and molds in the plastic industry.
Detailed Photos
Product Parameters

Specification	M618
Work surface size (length x width)	450*150mm
Maximum distance from spindle center to table	460mm
Maximum travel of worktable left and right	490mm
Maximum travel of workbench	180mm
Maximum load-bearing capacity of workbench	200mm
Hand wheel front and rear feed per revolution	4.0mm
Hand wheel front and rear feed per grid	0.02mm
Handwheel up and down feed per revolution	2.0mm
Handwheel up and down feed per grid	0.01mm
Spindle motor	1.1kw
Cooling pump	40w
Grinding wheel speed	2850rpm
Grinding wheel size (outer diameter x width x inner diameter)	φ180*16*φ31mm
Machine gross weight	750kg
Machine net weight	680kg
Machine tool dimensions (length × width × height)	1550*1110*1650mm

Certifications
Customers visit
FAQ
Q: Why choose Our MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 23 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
