Containerized RO Bwro Reverse Osmosis Purification Machine Sea Seawater Desalination System Ultra Filtration System UF Ultrafiltration Water Treatment Plant

Product Description

Containerized bwro seawater desalination system ro system with UF ultra filtration system

Tips: one gallon=3.785 liters, 1m3=1ton=1000 liters
Different Water TDS(Total Dissolved Solids) compare and usage
Raw water/Application	Bottled water,	City tap water	Brackish water	Seawater
	Bag water
TDS Range	2-10ppm	100-1000ppm	2000-20000ppm	20000-40000ppm
Direct Drinking	Yes	Yes/No	No	No
Cooking, human	Yes	Yes	No	No
consumption, washing
Irrigation, Industry,	Yes	Yes	No	No
Animal Drinking
For inudustry use: Condutivity beteen range 1-0.15us/cm or Resitivity 1-18 megohm. Different industry have different water quality requriement.
1..Electricity supply:220V-480v, 50hz or 60hz,3 phases 2.Capacity: 500L/H to 50m3/hr. 20ft or 40ft containerized 3.Membranes :DOW(Dupont) or Toray or Vontron 4.UV sterilizer/Ozone generator, CIP washing system, anti-scale dosing system is for optional

60m3/hr filters with reverse osmosis system

Normal If feed water is large capacity we will choose the UF ultrafiltration system
as the pre-treatment
UF ultrafiltration system photo (80m3/hr)
UF ultra filtration system photo (70m3/hr)
SWRO Process steps introduction.

Pre-treatment	Feed water pump, Stainless steel	Provide pressure for filters;
	Quartz sand filter	Remove suspended particle and large impurity. In this system;
	Active Carbon Filter (option)	Remove the color, free chloride, organic matter, harmful matter, ect;
	Anti-scalant system	To add chemicals to remove some impurities and prolong thememebranes using/washing time(prevent membrane blocking)
	Manual/Auto control valves	Flushing sand/carbon filter after some time
	5micron filter	Remove larger than 5 micro colloids in the water. In this system
	1micron filter	Remove larger than 1 micro colloids in the water. In this system
water RO Main Part	High pressure pump, Stainless steel 316L	Provide the high pressure to RO membrane;
	Ro membranes	More than 98% desalination rate, can remove ions except H2O.
	CIP system	To washing the membranes when it is blocked after using for long time
	Electronic control panel	PC controller or PLC controller

RO process flow chart: (Carbon filter softener based on feed water quality opiton)

Model	Productivity	Motor power	Recovery rate	Outlet water conductivity(us/cm)	Raw water conductivity
HYRO-500L	0.5T/H	1.5kw	50	≤10	≤300
HYRO-100L	1T/H	2.2kw	50	≤10	≤300
HYRO-2000L	2T/H	3kw	50-60	≤10	≤300
HYRO-3000L	3T/H	4.5kw	55-65	≤10	≤300
HYRO-4000L	4T/H	6.5kw	55-65	≤10	≤300
HYRO-5000L	5T/H	8kw	60-70	≤10	≤300
HYRO-1000L	10T/H	15kw	60-70	≤10	≤300
HYRO-2000L	20T/H	22kw	65-75	≤10	≤300
HYRO-3000L	30T/H	26kw	70-75	≤10	≤300
HYRO-50000L	50T/H	55kw	70-75	≤10	≤300

Detailed Photos Borehole water RO


Seawater RO system

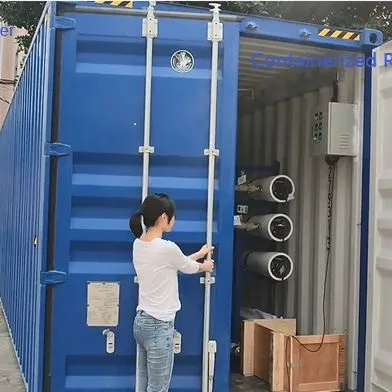

Containierized ro

We can customized reverse osmosis system price

2 factories +300 workers+ Experienced engineeing team

Company Profile - We are dedicated in water treatment since 2006
- Direct factory with mature supply chain to offer good price
- Export experience over 30 countries, familiar with customs issues
- Customized water treatment solution for varied industries
- ISO9001 quality certification & OEM service available

exbition
Case
Buying Guides
In order to make the quote best fit your demand, kindly confirm as below: 1- Untreated water: from well water(send water test report),seawater or other? 2- Treated water purpose: Meet city tap water standard for humandaily use(TDS less than 500ppm) or other purposes? 3- Outpu capacity: How many liters/gallons per hour do you need? 4- Will the power supply 380v/50hz/3ph or others there? I would like to introduce our company HaiYuan Water Treatment CO.,Limited. Our advantages: --We can give you what you the ideal price and quality. - We are dedicated in water treatment since 2006 - Export experience over 100 countries, familiar with vary water quality. - Customized water treatment solution for varied industries - ISO9001 quality certification and CE certification & OEM service available.
Sherry
Product manager

---
