Hand Held Gasoline Petrol Vertical Yn27c Mining Rock Drill

US$300.00-1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

YN27C/Pionjar 120 rock drill

Controlling Mode

Portable/Hand Held

Number of Shaft

Gasoline/Petrol

Hole Diameter

<50mm

Automatic Grade

Manual

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Operation Power

Gasoline/Petrol

Certificate

SGS&ISO9001:2008

Usage

Oncrete and Rock Drilling, Mining and Quarrying

Suitable

Drilling Blast Holes in Medium-Hard Rock/Second Bl

Hose Type

Both Air Hose and Water Hose Available

Shank of Drill Rod or Breaking Rod

Hex22*108mm

Color

Green/Yellow/Blue/Red or Depends on Your Request

Drilling Depth

Drill Speed

250mm/Min

Bore Diameter

28-42mm

Transport Package

Wooden Cases/Cartons

Specification

CE&SGS

Trademark

BESTLINK

Origin

Xiamen, China

HS Code

84671100

Production Capacity

1000sets/Month

Product Description

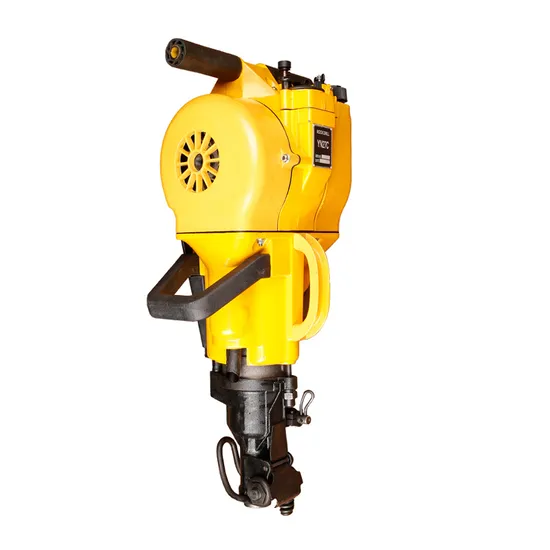

Hand Held Gasoline Petrol Vertical Yn27c Mining Rock Drill
1. Very compact structure, Less of the-easy-to-damage-parts, very easy to control. It can adapt to these outside situations there is no water and no electronic power.
2. It is a Kind hand held drill built up with gasoline engine, Air pump, rock drill and the rotation plumbum equipment for running or stop.
3. It can be used for breaking, drilling, blasting, tamping splitting and ramming.
Advantages of hand-held rock drill:
A: Reasonable design
B: Convinient operation
C: Fast drilling velocity
D: Engery-saving
E: Efficient
F: Long service life of parts
G: Parts highly interchangeable and reliable performance etc
H: Both hand held and with airleg available.

Type	YN27C
Weight of main machine	27kg
Overall dimensions(LWH)	746315229mm
Type of engine	Single cylinder, air cooled two strokes
Cylinder diameter*stroke of piston	Φ58*70mm
Rotation speed of engine	≥2450rpm
Displacement of engine piston	185cm³
Type of carburetor	hand needle valve, floatless type
Ignition system	controllable silicon, contactless system
Drilling speed (mean value of five holes)	≥250mm/min
Drilling hole diameter	28-42mm
Max drilling depth	6m
Fuel consumption	≤0.12L/m
Tank capacity	≥1.5liter
Mixture ratio of gasoline and lubrication oil (in volumes)	12:01
Mixture ratio of gasoline and lubrication oil (in volumes)	12:01
Drill rod and breaker shank	Hex22*108mm
Rotating speed of drill rod	≥200rounds/min
Clearance of spark plug	0.5-0.7mm
