China Material Handling Machinery Excavator Electric Fixed Stationary Grabbing Crane Machine China Hydraulic 22ton Material Handler for Light Scrap Steel

Product Description

Introduction:

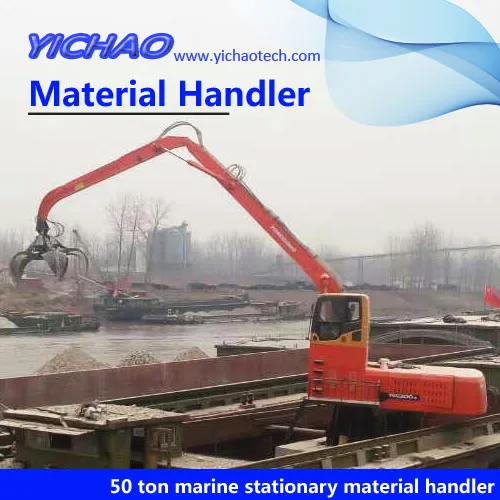

The steel grabber material handling machine is a kind of scrap loading and unloading equipment. It can realize a variety of operation functions by changing the gripper material handling and working device. Therefore, it is also called a grabber, which is widely used in steel plants, smelters, ports, docks and scrap transfer. Special engineering machinery in the industry, equipped with different grippers (such as plum grab, shell grab, round grab, billet grab, hydraulic shear, hydraulic pliers, etc.) to meet different customer conditions for scrap, ore, coal The demand for bulk fertilizer and yellow sand loading and unloading.
1.Economical and reliable
Single pump constant power, dual pump cross power control, stable engine output;
Negative flow pump control method and good economy;
The hydraulic oil radiator and engine water cooler are cartridge-mounted, compact and efficient;
Hydraulic hoses and seals are fixed with imported products and have high reliability.
2.Reasonable design
The boom and the arm are hydraulically locked, and the impact resistance is good, and both of them realize the double pump confluence, the stick regeneration, the multi-motion composite, and the work is stable;
Two speeds of walking speed are selected to achieve two speeds to meet different working conditions;
Upper arm brake for walking and swinging mechanism, hydraulic opening, good safety;
Flexible configuration according to different grades of users;
The power system, hydraulic system and working device can be freely and flexibly configured according to user requirements;
The working device adopts the structure of "straight moving arm and curved stick", and is equipped with electric suction cup and lifting driver's cab;
3.High efficiency and environmental protection
Simple operation, convenient maintenance and safe and reliable performance;
Environmental protection, energy saving, low noise and long service life;
The far-infrared remote control system can realize long-distance operation; the crawler type traveling device has small grounding pressure, stable walking and flexible steering.
Advantage:
1.The engine air filter is double-filtered, which can well cope with the problem of large dust on the scrap picking operation site. Especially in a closed working environment indoors, the dust concentration is greater. The dual filtration system increases engine efficiency and extends service life.
2.The cab can choose height adjustable type or fixed type with different height.The cabin is shockproof and soundproof type.It has wide view and equipped with air conditioning and audio, air seats, safe and comfortable.
3.Power system, hydraulic system and grabbing implements can be customerized according to different working size and work requirement.
4.Standard central lubrication make daily maintenance easy.
5.Diesel and electric hybrid drive can be driven by both internal combustion engine and electric motor drive.
Driven by electric motor, it has low maintenance cost, no pollution and low failure rate. 4. Motor operation is one third of the cost of internal combustion engine operation.
6.Original imported hydraulic system, exclusive electronic control system, the perfect integration of mechanical, electric and hydraulic integration.
7.widened and extended "X" frame, standard with 800mm aluminum plate, strong stability, to ensure the efficient operation of the whole machine.
8.It adopts high-strength wear-resistant steel, shell-type grab, plum grab, electromagnetic sucker and other accessories to flexibly switch, and can be customized according to working conditions.
9.Original imported hose, steel wire surround, to prevent oil leakage, high reliability.
10.Equipped with a hydraulic oil strong air heat sink to ensure that the hydraulic oil temperature rise of the equipment does not exceed 80 °C. Effectively extend the life of hydraulic seals.
Specification:

Model		YGYCGZ600 CRAWLER
Engine
	Diesel engine	Cummins
	Model	QSL8.9-C360(EURO III)
	Type	Turbocharged, air air cooling
	Cylinder No.	6
	Cylinder diameter/stroke	114mm/144.5mm
	Piston displacement	8.9L
	Rated power	264KW/2100rpm
	using power	256kw/1800rpm
	Max torque	1500N.m@1500rpm
	Air filter	Secondary dry air filter + prefilter
	Alternator model	Cummins/21BJ077,24V,70A
	Starting motor model parameter	Cummins/C5256984,24V,7.5kW
Electronic system
	System pressure	24v
	Battery set	2x12v/180Ah
Hydraulic system
	Type	Dual pump dual loop negative flow control variable system
	Main pump type	shaft type plunger variable dual pump
	Max flow	2x400 L/min
	Max working pressure	31.5Mpa
	Pilot type	Gear pump
	Max flow	1x30L/min
	Max working pressure	3.92Mpa
	Secondary overload pressure	35Mpa
	Walking	35Mpa
	Swing	29.5Mpa
	cylinder (QTY - cylinder diameter x stroke)
	Arm cylinder	2-φ170mmx1825mm
	Stick cylinder	2-φ140mmx1635mm
	Plum flower grab cylinder	5-φ80mmx350mm
	Shell grab cylinder	2-φ125mmx400mm
	Hydraulic oil cooling mode	Hydraulic oil radiator is forced by the hydraulic motor to dissipate heat
	Working cycle time	20-25S
Walking system
	Walking, steering control	Pedal control with joystick
	Walking motor	2x axial plunger type quant motor
	Retarding mechanism	two stage planetary gear reducer
	Travel brake	closed wet multi-disc brake
	Walking speed	two stage 0-2.9/0-5
	Maximum traction	365kN
	Climbing ability	30°
	Vehicle chassis type	X type
	Crawler frame	Box type section construction
	Crawler tension	Butter cylinder tensioned
	segments	Three-stiffened heavy track plate
	Segments number	54 pcs per side
	Drag sprocket number	2 pcs per side
	Supporting roller number	10 pcs per side
Rotation system
	Type	Open type hydraulic driven
	Rotary motor	1x axial plunger type quant motor
	Retarding mechanism	Two-stage planetary reducer
	Slewing brake	closed wet multi-disc brake
	Slewing bearing	Single line ball type swing support
	Rotary speed	10.5rpm
Oil/fuel capacity
	Hydraulic oil tank	730L
	Fuel tank	540L
	Cooling water tank	50L
	Engine oil	18L
	Travel reducer gearbox	2x8L
Driver's sight height
	Fixed increased cabin height	1700mm
	Fixed increased cabin driver's sight	4250mm
	Lifting type cabin lifting height	0-1900mm
	Lifting type cabin driver's sight	2550/4450mm
Plumblossom grab (including suspension assembly)
	Grab capacity (M3)	1
	Gravity (t)	2.02
	Close/open size (mm)	1480/2750
clamshell grab(including suspension assembly)
	Grab capacity (M3)	3
	Gravity (t)	2.1
	Close/open size (mm)	1990/2600
	A main machine length	15800
	B. Height of main engine (fixed increase by 1000mm)	4370
	C main machine width	3600
	D platform width	3400
	E center distance between drive wheel and guide wheel	4260
	F track length	5200
	G gauge	2800
	H track width	800
	I track plate width	3600
	J track height	1050
	K minimum ground clearance	400
	L tail turning radius	5200
	M hood height above ground	2590
	N. Ballast clearance above ground	1190

Photos

---
