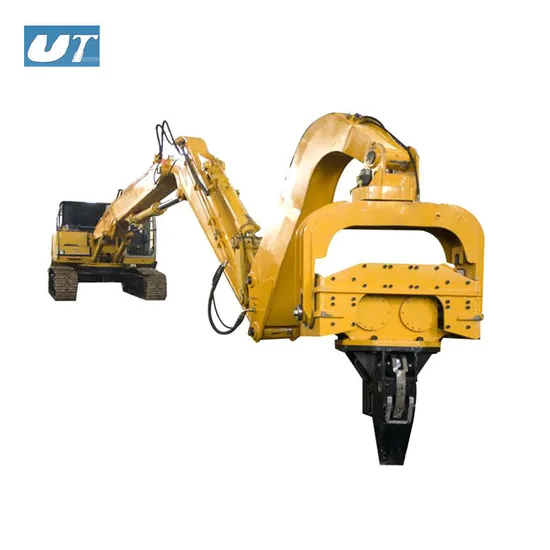

Excavator Piling Machine Rotating Type Hydraulic Pile Hammer

Product Description

Features
1,It is specially designed for excavator usage.
2,Easily operating and make full use of the hydraulic power of excavator; the hydraulic pressure is adjusted according to the different working situation to reach a proper impact force.
3,This new generation product increases the production efficiency and realizes versatility of excavator.
4,Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and many other shapes.
Main components of the vibro pile hammer:
-main body
-vice arm
- Hydraulic sheet pile clamper
We have many models of clamps and vice arms for your selection.

Pile hammer
Performance	Eccentric Moment	Centrifugal Force	Amplitude	Frequency	Pressure	Flow	Max turning	Suitable excavator
UTDC30	40Nm	300kN	6.8mm	2800rpm	240-260kg/cm2	155-200(L/min)	270degree	20-35tons
UTDC40	85Nm	570kN	14mm	2800rpm	240-260kg/cm2	200-255(L/min)	270degree	30-50tons
Dimensions	Hammer			Goose neck		Clamping jaw
	Length	Width	Height	Length	Width	Length	Width	Height
UTDC30	1175mm	640mm	1280mm	2200mm	300mm	750mm	600mm	375mm
UTDC40	1580mm	692mm	1460mm	3000mm	300mm	750mm	600mm	375mm
Weight	Hammer		Goose neck		Jaw		Total weight
UTDC30	1850kg		550kg		350kg		2750kg
UTDC40	2350kg		650kg		400kg		3400kg
