US$15,000.00-18,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Surface Grinding Machine
Controlling Mode
Artificial
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, RoHS, ISO 9001
Longitudinal Travel
1130mm
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description
DESCRIPTION OF GOODS

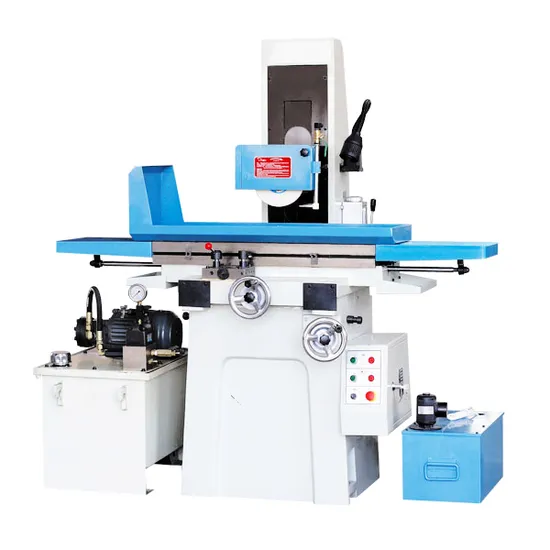

Saddle type Hydraulic surface grinder
Machine body made by resin sand and carried on aging treatment which can prevent deformation.This model is saddle type,have good rigidity,have good stability,
have good appearance,easy operation.The guide rail is put on PVC laminating and scratched by human which can decrease the abrasion of the guide rail,ensure
the process precision and and extend it.
The grinding head move up and down which adopt worm wheel& worm bar which can reduce the falling down of the grinding head caused by its weight and get
smooth feed grinding and protect the lead screw when the grinding head move up and down.
| Model | Units | MY820 | MY1022 | MY1224 | MY1230 |
| Table Size (L×W) | mm | 480*220 | 540*250 | 600*300 | 750×300 |
| ( L×W) |
| table travel | mm | 530x220 | 560x260 | 630x320 | 780x320 |
| speed of working table | m/min | 3-20 |
| Distance From Spindle to table | mm | 450 | 450 | 530 | 530 |
| Table Slide way | / | V-type rail with Steel-ball | Double V-type rail |
| V-type rail with Steel-ball | kg | 200 | 200 | 250 | 250 |
| Number of T -Slot | mm*n | 14*1 |
| Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 4/revolution |
| Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 2/revolution |
| Wheel Size (dia.×width×bore ) | mm | 200*20*31.75 | 250*25*76.2 |
| wheel Speeds(50HZ) | rpm | 2850 | 2450 |
| Spindle Motor | kw | 1.1 | 1.5 | 2.2 | 2.2 |
| Hydraulic station motor | kw | 1.5 | 1.5 | 2.2 | 2.2 |
| Rapid Up and down Motor | w | | 120 | 120 |
| Working Pressure | Mpa | 3 | 3 | 4 | 4 |
| Max.Capacity | L/min | 18 | 18 | 20 | 20 |
| Fuel tank capacity | L | 80 |
| Packing Size (L×W×H) | mm | 1700*1200*1940 | 1300*1620*1900 | 1960*1640*2020 | 1960*1640*2020 |
| Net,Gross | kg | 750/850 | 900/1000 | 1300/1430 | 1400/1530 |
>>
