Firmcnc China Woodworking Turning Machine 1530 CNC Wood Lathe for Staircase, Baseball Bat

Product Description

China Woodworking Turning Machine 1530 CNC Wood Lathe for Staircase, Baseball Bat Product Description
FIRMCNC Brand cnc wood lathe have different models, such as FM15016, FM15030, FM20030, FM30030 etc. the size can be customized, we offer 3 years warranty, the whole life technical support.
For first time coopeation, we will help to solve the below issues, such as to choose economic but high-performance machine, shipping cost, import custom tax fee, the after sale problems, technical support etc.

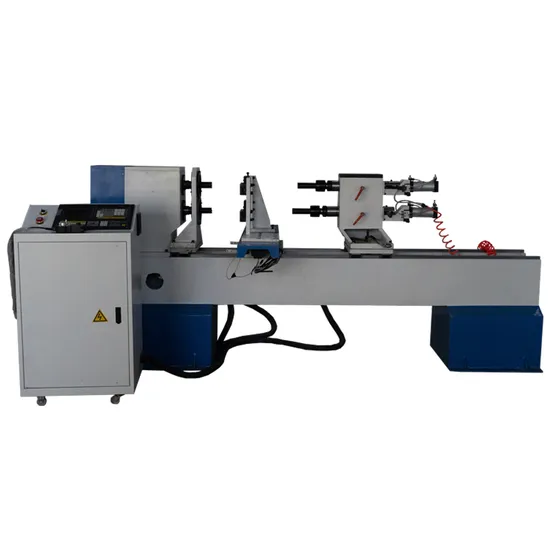

CNC Wood Lathe Brief introduce:
Wood lathe is a device that can create items such as stairway posts,designs on wood,and more.
A CNC wood lathe is operated by a panel which is controlled by the user.
Lathe machine is designed for cylindrical or conoid workpieces, for example pillar, banister, chair legs,etc.
All lathes work the same way.USB access device,turning garland, a molding.single axis, double blades,2 pieces blade cutters.
CNC Wood Lathe Advantage :
1. Operating system: CNC panel control handle, easy to operate and easy to learn
2. Auxiliary part: thickened steel plate welded and cast, 2.9 meters long, low vibration, no deformation, high stability
3. Power part: the frequency conversion speed regulation system is adopted, which can solve the problem of wood flutter by adjusting the rotation speed
4. Transmission part: adopts the linear guide rail (square rail oblique tooth, ball screw) of Taiwan Shangyin, with high accuracy and stable operation
5. Control part: using mature CNC controller, stable work, simple installation and debugging. Adopt international standard CNC language G code. Support a variety of software, support technical function expansion.
6. Movement part: high-precision stepper motor drive, guaranteed processing size, Taiwan guide rail, combined with ball screw drive, strong environmental adaptability, not afraid of dust. Ensure machining accuracy. Frequency conversion speed regulation, the main shaft runs automatically, and the processing automation is high.
7. The bed part: casting molding, stable structure, high-frequency quenching and grinding imported linear square rail, low vibration, can ensure high-precision processing
CNC Wood Lathe Technical Parameter:

Description	Parameters
Model	FMP15016	FMP15030	FMP20030	Customized
Table Bed Size (mm)	1500 *160mm	1500 *300mm	2000 *300mm	Customized
Controller system	DSP control system
Cutting speed	8-15m/min
Inverter	Fuling inverter
Driving System	Step motor and drivers
X,Y,Z axis guide rail	Taiwan HIWIN guide rail
Repeat positioning accuracy	±0.05mm
Process precision	±0.35mm
Transmission model	Gear rack drive
Working Voltage	110V/ 200V/ 380V
Software supported	TYPE3/ARTCAM/UCANCAM/CAXA/MASTERCAM/ Other software output code
Cutter	Four cutter Two spindles and two rotary axis

CNC Wood Lathe Standard Configuration

Item	Quantity	Note
DSP controller	1 set
Air pipe	3 meters
spanner	1 piece	Without spindle
	2 pieces	With spindle
Turning cutter	1 pieces	Single axis single cutter
	2 pieces	Single axis double cutter
	2 pieces	Double axis single cutter
	4 pieces	Double axis double cutter
Engraving cutter	2 piece	With spindle
	none	Without spindle
collect	2 piece	With spindle
	none	Without spindle
Limit switch	1 piece
E-stop switch	1 piece
switch	1 piece

Main parts and samples
CNC Wood Lathe main parts
#Cast iron bed
#CNC Panel contorller, optional DSP controller
#Taiwan HIWIN squral rails
#Taiwan TBI ball screw
#Fuling inverter
#5.5KW big motor
#Leadshine stepper motor
#YAKO 2D811 driver
#CAD software
*Cast iron structure bed,very heavy and very stable
*Control box,very tidy,neat and reasonable
*Protection device,in case the materials break off from chucking appliance and hurt people.
*Air cylinder,can be controlled by foot-switch and fix materials firmly
CNC Wood Lathe Application :
For the production of solid wood furniture, solid wood staircase, wood columns, solid wood floor racks, wood decorative, wood crafts,
such as rotating working pieces machining. Applies to furniture, staircases, decorative, wooden crafts manufacturing factory, etc.
The final products include various cylindrical working pieces, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
CNC Wood Lathe Samples
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including cnc wood router, wood lathe, wood cutting machine, cnc lathe, mould cnc milling machine, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Customer visit factory
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
FAQ
1.Can you recommend a cnc wood lathe?
Yes, In order to give you a suitable cnc wood lathe, pls tell me your working area ? processing materials ?
Then perfect suitable machine will be recommend.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.
usually for all parts can perfect working 5 years without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.

---
