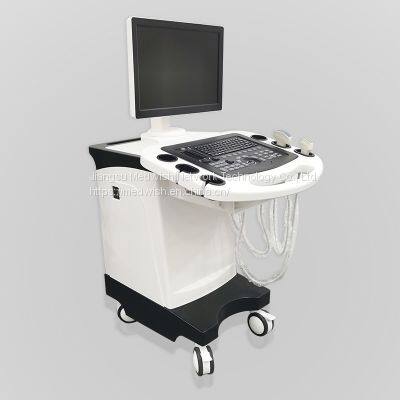

Trolley Color Doppler MDW-XFE2000

Product Details

Product Description

Product Description
Trolley Color Doppler MDW-XFE2000
SpecificationDisplay: 15 inch LCD screen
Scanning mode: electron convex array, high frequency linear array, cavity, micro convex, rectum;
Image mode:
R B, B+B, 4B mode
R B+M mode
R CFM color blood flow pattern
R B+CFM mode
R PDI energy mode
R PDI+B mode
R PW mode
R B tilt mode (Note: B- tilt only applies to high-frequency linear probes less than or equal to 40mm.)
R 3D mode (Optional)
Scanning depth: 2-280mm
Operating frequency range: 2.0-12.0MHz
Probe interface: 2 automatic probe identification ports
Dynamic range: 80~280dB adjustable;
Display modes: B, B/B, 4B, M, CFM, CMF/B, PDI, PW, THI;
Application mode: abdomen, gynecology, obstetrics, superficial organs, pediatrics, urology, heart, blood vessels and other modes;
Imaging modes: full digital multi-beamforming, speckle noise suppression, tissue harmonic imaging, etc
Sound output: real-time display of mechanical index and thermal index, adjustable sound power and real-time display;
Gray level: 256;
Display depth: ≥280mm;
Pseudo-color processing: 16 pseudo-color coding options;
Gain adjustment: 8 segments TGC, B/M/D/C gain can be adjusted respectively, TGC curve can be displayed and automatically hidden;
Image processing: Level 5 image optimization, edge enhancement, frame average, Line average, focus optimization, noise suppression, Gamma correction, closing curve, contrast
Degree, brightness adjustable, up and down, left and right flip;
Automatic optimization function: built-in multiple check types, according to different check types, preset the best image check conditions, reduce the adjustment operation keys;
Measurement and calculation: B mode conventional measurement, distance, circumference, area, volume, Angle, ratio, and shorthand rate, M mode conventional measurement, woman
Department measurement, obstetrics measurement, cardiology measurement, urology measurement, PW measurement and other measurements.
Image annotation: alphanumeric input, adjustable annotation arrows, labels and comments, body markers, patient and hospital ids, etc.
Image storage: image storage, video storage. Movie playback, solid state disk storage capacity ≥128G;
Patient data: medical record management, report query and printing, image and video output (hard disk, USB, optional DVD-RW), built-in ultrasound workstation;
Report page system: automatic report generation system, and full-screen characters in Chinese and English editing;
Interface: HDMI, VGA, USB, DICOM interface.
Support probe: electronic linear array CT7.5L40GN, electronic convex array CT3.5C60GN, electronic cavity CT6.5C10GN, electronic slightly convex CT3.5C20GN
Electronic convex CT6.5C8015, electronic convex CT7.5C8020, electronic rectal CT6.0L8064
Input voltage: 100-240V, 50/60Hz (built-in 19V,5.8A,DC adapter; 12V, 2A, DC adapter)
Appearance size: 590mm×885mm×1205mmm (length × width × height)
Weight ≤ 18Kg
Packing Details935mm*640mm*870mm G.W:79KG

---
