Paper Food Containers Forming Machine

Product Description

Paper food containers forming machine:
It is an ideal equipment to produce paper box such like hamburger box, chips box. Fried chicken box, kids meal box, etc.
Automatic Carton Erecting Machine with firm structure, high quality, low noise and high efficiency.
It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.
Technical specifications:

TYPE	HBJ-D800	HBJ-D1200
Productivity	60-160pcs/min	120-300pcs/min
Material	200-600gsm	200-600gsm
Power Source	380V50Hz	380V50Hz
Total Power	5.5KW	5.5KW
Box Length	100-450mm	100-450mm
Box Width	100-600mm	100-385mm
Packing Size	3600*1500*1700mm	3600*1850*1700mm
Weight	2.2T	2.8T

Carton Erecting Machine(single head)
The paper box made by this machine can be used in packing of KFC and Mcdonald. S or other
Erecting Machine(single head) Hamburger Press printing machine
Carton Erecting Machine(single head)
The paper box made by this machine can be used in packing of KFC and Mcdonald s or other food

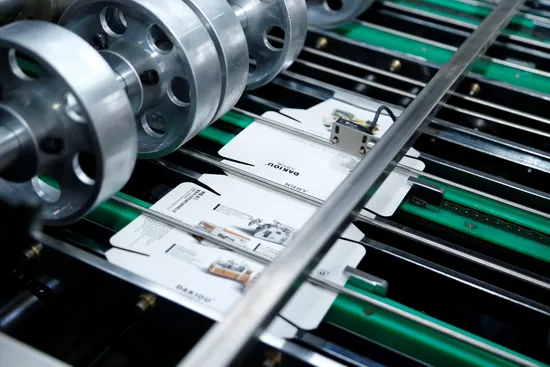

2. Work principle:
The feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chain and the sends it to the shaping mold, during the procedure, the cardboard has been glued an you can adjust the position of the gluing, the volume of gluing can be measured while in progress withour stopping word. After being glued, the cardboard will be conveyed to be shaped and collected to be auto calculated as the preconcert quantity and auto mark withouot stopping production, structure: Control unit, paper feeding unit, paper transfer unit, glue spreading unit, forming unit, collecting unit.

---
