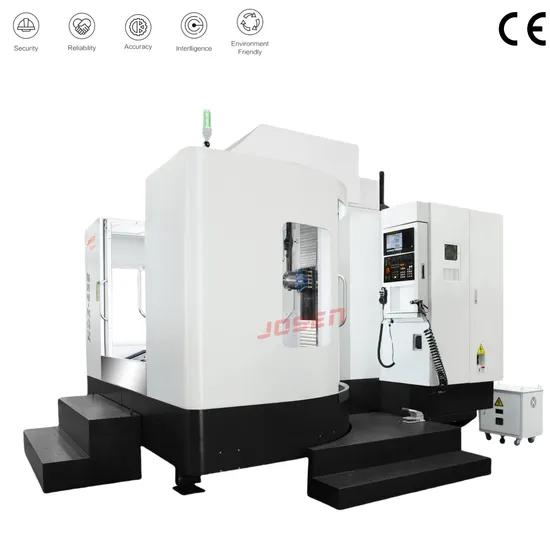

Factory Price for Linear Control High Rigidity Horizontal Machining Center of Metal Heavy Cutting Horizontal Machining Center High-Speed Vertical Machine HD63E
| Main technical parameters | Unit | HD-63E | HD-80E | HD-125E |
| X-axis travel | mm | 1100 | 1400 | 2000 |
| Y-axis travel | mm | 950 | 950 | 1150 |
| Z-axis travel | mm | 900 | 900 | 1150 |
| Distance from nose of spindle to table surface | mm | 135- 1035 | 150-1050 | 350-1150 |
| Distance from spindle center to table top | mm | 135- 1085 | 100-1050 | 20-1170 |
| Rail type | mm | Linear Roller Slides (X, Y, Z) | Linear Roller Slides (X, Y, Z) | Linear Roller Slides (X, Y, Z) |
| Table size(X*Y) | mm² | 630*630 | 800*800 | 1250*1250 |
| Table weight | kg | 1200 | 2000 | 5000 |
| B-axis indexing (continuous indexing) | mm | 0.001 | 0.001 | 0.001 |
| T-slot size (width X distance X number of slots) | mm | 18*100*5 | 22*100*7 | 22*200*5 |
| Spindle speed | rpm | 40-6000 | 40-6000 | 40-6000 |
| Spindle taper | | BBT#50(ISO50) | BBT#50 | BBT#50(ISO50) |
| Number of spindle speed changes | | Belt type | Belt type | Belt type |
| Rapid feed rate (X/Y/Z/B) | m/min | 24/24/24/10rpm | 24/24/24/10rpm | 10/12/10/3rpm |
| Fastest cutting feed rate | mm/min | 8000 | 8000 | 8000 |
| Tool shank type | | MAS403-BT50 | MAS403-BT50 | MAS403-BT50 |
| Tool magazine capacity | | 30 (40,60) | 30 (40) | 30 (40) |
| Tool selection method | | Automatic tool change | Automatic tool change | Automatic tool change |
| Tool change time | sec | (T to T) 10.5 | (T to T) 10.5 | (T to T) 10.5 |
| Maximum tool diameter/neighboring empty diameter | mm | Ø110/Ø200 | Ø110/Ø200 | Ø110/Ø200 |
| Maximum tool length | mm | 350 | 350 | 350 |
| Max. tool weight | kg | 18 | 18 | 18 |
| Spindle motor (continuous/30 min) | kW | 15/18.5 | 15/18.5 | 15/18.5 |
| Servo motor | kW | 3.0/3.0/3.0/3.0 | 3.0/3.0/3.0/3.0 | 3.0/3.0/3.0/3.0 |
| Total power supply | KVA | 45 | 45 | 45 |
| Cutting fluid capacity | liters | 350 | 350 | 380 |
| Lubricant tank capacity | liters | 6 | 6 | 6 |
| Positioning accuracy JIS B6338 | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Positioning accuracy VDI/DGQ3441 | mm | 0.015 | 0.015 | 0.015 |
| Repeatable positioning accuracy JIS B6338 | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 |
| Repeat positioning accuracy VDI/DGQ3441 | mm | 0.01 | 0.01 | 0.01 |
| Controller | | FANUC 0I-MF | FANUC 0I-MF | FANUC 0I-MF |
| Machine weight | kg | 15000 | 17000 | 24000 |
| Machine height | mm | 3200 | 3200 | 3600 |
| Floor space (L*W) | mm² | 3762×5928 | 4102×6128 | 6400×5912 |
