China Factory Price Hammer Crusher Machine Manufacture Plant for Stone/Granite

Product Description

Product Description

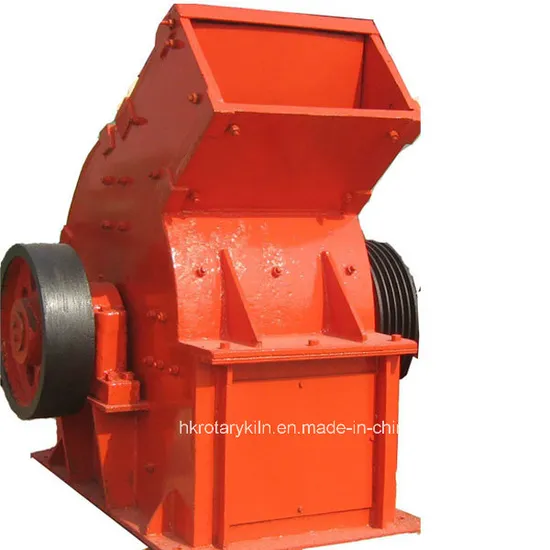

Introduction Hammer crusher use the impact force between high-speed rotating hammers and materials to do the break work.Hammer crusher has the advantages of simple structure, large crushing ratio and high production efficiency etc. And can crush in dry & wet way. It is widely used in to crush the medium hardness and brittleness materials in mining, cement, coal, metallurgy, building materials, roads, fuel and other departments. The grate gap of hammer crusher can be adjusted to meet different particle size as requirements.
The main working part of hammer crusher is rotors with hammer. The rotors consist of main shaft, disk, pin shaft and hammers. The motor drives the rotors to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by the high-speed hammer to small size. There is a screening plate under the rotor, so that materials with size smaller than the screen mesh will be screened out and others are left to be further hammered and ground until reach the standard size. The size of the final product can be adjusted by changing the screening plate. The gap between the rotors and the screening plate can also be adjusted according to different requirement.
Main Features

Hammer crusher Features : The hammer crusher hammer and grate screen wear down quickly ,take time long to maintain and find balance , when crush hard material, wear faster; Broken sticky wet materials, easily blocked grate screen, therefore easy to cause the machine halt (the water content of the material should not exceed of 10%).For the above aspects, Henan LanJi machinery manufacture Co., LTD, Niu engineer made accurate adjustment to hammer key parts,makes hammer crusher service life increased 20%, reduce the weakness of bearing overheating, uneven grain size, low output and loud noise, reduce the energy consumption of the crusher, make this series crusher to low energy consumption, high wear-resisting, environmental protection direction Working principle

Working Principle:

Model	Rotor Size (Dia.×length ) ( mm )	Rotor Speed ( r/min )	Feeding Size ( mm )	Output Size ( mm )	Motor power ( KW)	Capacity ( t/h )	Weight ( kg )
PC400×300	Φ400×300	1440	≤100	≤10	7.5	5-10	900
PC600×400	Φ600×400	960	≤100	≤15	18.5	10-20	1500
PC800×600	Φ800×600	970	≤120	≤15	45	18-24	2680
PC1000×800	Φ1000×800	990	≤200	≤15	110	30-50	5600
PC1000×1000	Φ1000×1000	990	≤200	≤15	132	30-60	8000
PC1200×1200	Φ1200×1200	750	≤250	≤20	180	90-110	19000

FAQ

FAQ:
1. What is the raw material do you want to grind?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the output size of your product?
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of rotary kiln equipment and related machinery
(Rotary kiln, granulator, crusher, grinder, dryer, cooler, feeder, conveyor belt), etc.
2.What should I do if I encounter some trouble while using it?
A: We will provide English manuals and videos to show you how to solve the problem, and if necessary, we will dispatch our engineers to your factory.
3. Do you provide installation services after ordering the machine?
A: For single machines, we provide guidance and operation videos for users.
For the production line, we provide professional construction drawings and arrange engineers to guide users in installing machines. Assist users in training skilled workers.
4.Can we visit your factory and see your equipment?
A: We really warmly welcome every customer to visit our factory, and we can take them to visit the machinery factory
1. We have comprehensive technical and business consulting services;
2. Propose the most suitable solution and equipment for our customers;
3. Free CAD design: If you can provide materials, target capabilities, and factory information, we can provide you with free CAD design.
After sales service:
1. Safe and fast payment methods;
2. Assist clients in equipment foundation construction;
3. Dispatch engineers to install and debug the equipment;
4. Provide training for frontline operators on site;
5. Regularly visit customers, solve production problems, and provide lifelong service
Our engineers will suggest you the most suitable one for you according to your information.
We will give you factory price with full specification, so pls leave us an inquiry to know more details about price, packaging shipping and discount.
Now, please click the following contact to send us email for best offer and more details !
↓↓↓
