ASME CIP SIP Machenical Stirring Biological Fermenter Fermentation Tank

Product Description

Product describtion
Also called fermentation tank Stainless steel fermentation kettle Mixing tank fermenter Fermenter vessel usage It is mainly used for dairy, sugar, beverage, food and other elements mixing with all kinds of drugs to stir homo geneously. And now it has been the indispensable equipment in the dairy products, beverage, and pharmaceutical factories.
Fermenter characteristics
1. CIP cleaning and SIP sterilization online (121°C/ 0.1mpa). 2. Designed according to the requirements of hygiene level, the structure design is highly humanized and easy to operate.Smooth transmission, low noise.
3. Suitable diameter-height ratio design, customized stirring device, energy saving, good stirring and fermentation effect.
4. Internal tank surface mirror polishing (roughness Ra≤0.4µM);The opening of the inlet and outlet pipe, sight mirror, manhole and other processes and the welding of the inner tank are all using the stretching flanging process arc transition, smooth and easy to clean without dead Angle, to ensure the reliability and stability of the production process, in line with the "cGMP" and other specifications.

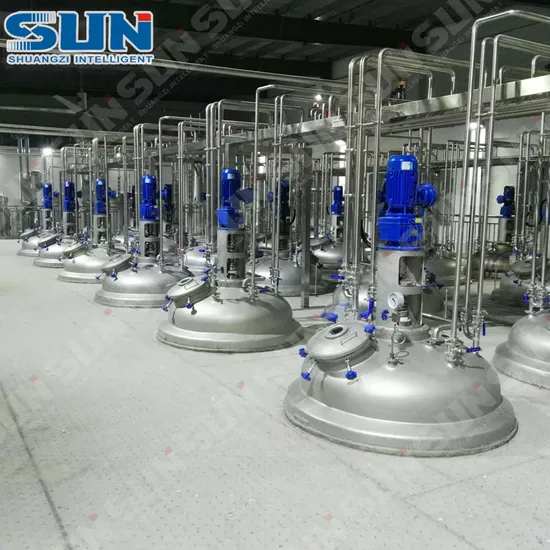

Sucessfull projects of fermenter kettle
The fermentation process of dairy products and alcohol is aseptic and pollution-free. The fermentation tank adopts aseptic system to avoid and prevent microbial pollution in the air, which greatly extends the shelf life of the product and the purity of the product. The tank body is specially designed and installed with aseptic breathing hole or aseptic positive pressure fermentation system.The tank body is provided with milo plate or labyrinth jacket, which can be fed into heating or cooling medium for cyclic heating or cooling.The capacity of the fermenter varies from 300 to 15000L.According to the scope of use, the fermenter can be divided into laboratory small fermenter, pilot production fermenter, large fermenter, etc.
Fermenters are widely used in dairy products, beverage, biological engineering, pharmaceutical, fine chemical industry and other industries. The tank body is provided with interlayer, insulation layer, which can be heated, cooled and insulated.The tank body and the upper and lower filling head (or cone) are processed by spinning R Angle, the inner wall of the tank is polished by mirror, and there is no sanitary dead Angle. The fully closed design ensures that the materials are always mixed and fermented in a pollution-free state. The equipment is equipped with air breathing hole, CIP cleaning nozzle, manhole and other devices.

Model	Capacity	Cylinder Diameter	Outer coil heat transfer area	Power	Stirring speed
FYF1000	1000Liter	1100mm	2.867m2	2.2-5.5KW	50-80r/min
FYF1500	1500Liter	1200mm	3.537m2	3-5.5KW	50-80r/min
FYF2000	2000Liter	1300mm	4.165m2	4-7.5KW	50-80r/min
FYF3000	3000Liter	1500mm	6.669m2	4-7.5KW	50-80r/min
FYF6000	6000Liter	1800mm	10.323m2	5.5-15KW	50-80r/min
FYF10000	10000Liter	2200mm	50m2	11-22KW	50-80r/min
FYF20000	20000Liter	2400mm	101m2	1155KW	50-80r/min

Factory introduce
Zhejiang Shuangzi Intelligent Co., Ltd is a domestically-owned enterprise invested by COSCO Corporation. It has a registered capital of 50,000,000 RMB, covers an area of 17,800 square meters. It was established in November 2007. Shuangzi is an innovative technology company specializing in the design, manufacture and installation of pharmaceutical equipment, biochemical equipment, dairy food equipment, environmental protection equipment and sanitary fluid pump valves. The company's existing mature products: crystallization equipment, evaporation and concentration equipment, extraction equipment, filtration equipment, container equipment, pump valve fluid pipe fittings and other products. It is now focusing on research and development in high-tech products in the fields of crystallization, concentration and drying, absorbing advanced technology from home and abroad, and carefully building domestic well-known brands. The company can provide users with engineering design, equipment installation and commissioning services, and provide turnkey projects.

---
