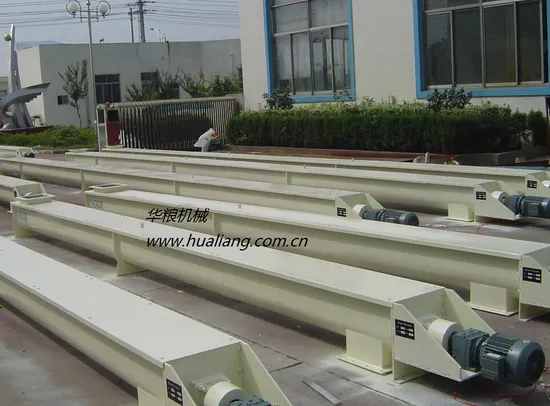

U Shape Screw Conveyor/Auger Feeder/Spiral Conveyor Non- Standard Customization

Product Description

The Screw Conveyor from JIANGSU HUALIANG MACHINERY CO., LTD. is extensively employed across diverse industries such as grain oil, feed mills, chemical sectors, building materials, metallurgy, mining, plastics, and pharmaceuticals.
Our sophisticated conveyor can be uniquely designed in both U-shape and tube type configurations to efficiently transport granular or powdered materials.
Crafted with precision, the conveyor comes in both shafted and shaftless variants, utilizing either robust carbon steel or durable stainless steel for superior performance.
The LSS serial screw conveyor features three distinctive auger flight types: whole board-type, draper-type, and blade-type, each catering to different material needs.
(1) The whole board-type is impeccably suited for handling granular or powdered materials, ensuring smooth and consistent conveyance.
(2) The innovative draper-type is expertly designed for the seamless conveyance of
cloggy materials, ensuring an uninterrupted flow.
(3) The advanced blade-type is ideal for transporting high viscosity
and compressible materials, with the added capability of simultaneously performing tasks like stirring and mixing during the conveyance process.
Customers can select the appropriate auger flight shape based on the specific material characteristics to achieve optimal performance.
Outstanding Features:
(1) The LSS serial screw conveyor's casing is entirely molded through pressing, and the bearings are fully sealed with a spherical exterior for enhanced durability.
(2) The size of the inlet, outlet, and discharge mounting can be customized to meet user specifications. The auger flight rotation can be either left-handed or right-handed, providing versatile operational flexibility.
(3) The connection between each section of screw shafts is seamlessly integrated with the core axis. The motor reducer is linked to the conveyor drive shaft via a flexible shaft coupling, facilitating easy installation, dismantling, and maintenance.
Key Technical Specifications .
A comprehensive gallery of various screw conveyors

Water-cooled screw conveyor
Screw conveyor equipped with a hopper
Shaftless screw conveyor

Multiple spindle screw conveyor Project Case Studies

---
