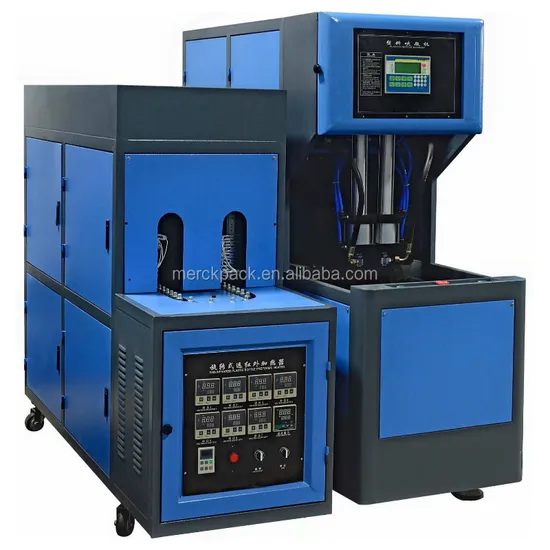

New Semi Automatic Bottle Blowing Machine 3-Liter Pet Blow Molding Machine

Product Description

------Description------
The Bottle Blowing machine is a device that uses blow molding technology to make plastic particles into hollow containers. lt operates stably,consumes less power, has wide applicability, is easy to maintain,saves time and effort, and effectively improves production efficiency. ------Parameter------

Category	Project	PRSAB---3L
The Finished Product	The Raw Material	PET
	Volume	3L
	The Theory of Production	700-1200PCS/H
	The Maximum Height	400MM
	The Largest Diameter	120MM
Template size	Theoretical Output	360*410MM
	Max Mold Thickness	220MM
	Min Mold Thickness	90MM
	Clamping Force	8TKN
	Open Touch the Trip	155MM
The Host Power	Power	8KW
The Oven Power	Voltage/Frequency (three-phase)	380V/50HZ/60HZ
Size	Host	1700*640*1600MM
	Oven	1720*585*1370MM
Weight	Host	550KG
	Oven	260KG

------Core Accessories------
1. With PLC and computer,empower stable and easy operation machine.
2. Selection of Korean PNC and domestic famous brand gas components.
3. Energy-saving design and reasonable & compact mechanical design. ------Advantage------
01 Customized Color 02 Customized Logo

03 Application
The Blow Molding Machine is suitable for various shapes of bottles, such as Water Bottles, Cosmetics Bottles, Carbonated Beverage Bottles, Juice Bottles, Edible Oil Bottles, Beer Bottles,Wild Mouth Bottle and so on.

------Flow Layout------
The blowing process of the bottle blowing machine main steps:
1) Firstly, put the heated plastic embryo into the mold;
2) Use a clamping cylinder to tighten the mold;
3) Use high pressure or mechanical structure to lock the prototype;
4) Medium and high pressure pre-blowing, while stretching the cylinder action to expand the blank;
5) High-pressure blowing, the preform is shaped according to the mold, and the pressure is kept for a certain period of time;
6) Release the high pressure in the formed bottle, reset the cylinder-take the bottle.
