Sheet Metal Roll Forming with High Precision

Product Description

Are you looking for high precision Roll Forming Machine that will provide exceptional performance?

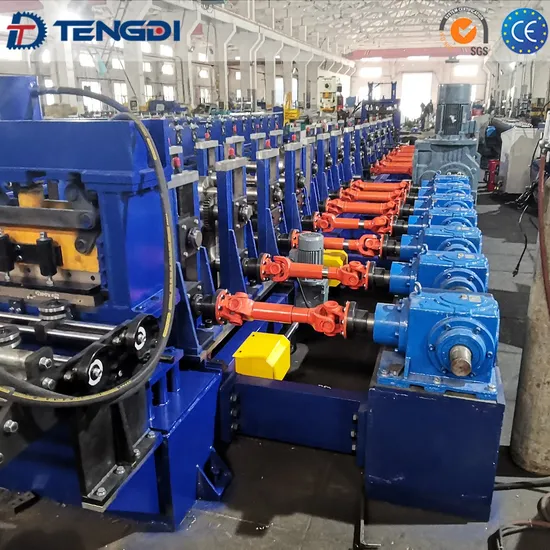

TENGDI's cold roll forming machine adopts continuous production technology, integrates machine, electricity and hydraulic integration, integrates advanced digital control technology, and is equipped with electric control and hydraulic equipment, advanced design concept, reasonable forming process and strong versatility , a cold roll forming machine with high strength, high performance and stability, can provide solutions according to profiles of different sections. Provide a multi-purpose production line with stable performance, high productivity and simple operation.
Quick Details
Forming host
(1) Forming line speed: 18m/min (2) Forming passes: 12 passes
(3) The archway is a three-dimensional cast iron archway, with chain transmission
(4) Shaft diameter: medium 55mm, material: 40Cr, quenched and tempered, HB240-280
(5) Forming roll: GCr15, quenched, HRC58~62°
(6) Main motor power: 5.5kw
(7) The fuselage is the main body of the rolling mill. It is made of thick square tube 60*100 steel and iron plate welded by numerical control. It is firm and beautiful. The base is equipped with adjusting bolts for adjusting the horizontal position of the fuselage. Easy to install and transport
(8) One set of calibration device, discharge height 850mm (9) One plunger pump station, 3kw
Flow chart and product unit
Customized according to drawings, you have drawings, we have high-quality machines.
Packaging & Shipping
Processing capacity
Exhibition photos
Certifications
FAQ
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.

Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.

Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.

---
