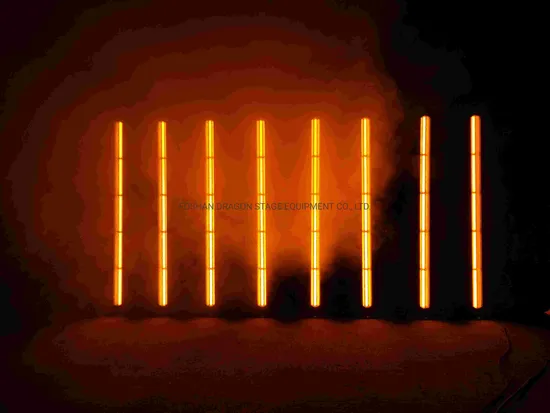

Dragonstage Art PRO Series Pixel 20 Bar Linear LED Wash Light

Product Description

dragonstage Art Pro Series Pixel 20 Bar linear led wash light
Product Description
Specification

item	value
Color Temperature(CCT)	4100K (Neutral White)
Lamp Luminous Efficiency(lm/w)	130
Color Rendering Index(Ra)	90
Support Dimmer	Yes
Lighting solutions service	Lighting and circuitry design, Project Installation
Lifespan (hours)	50000
Working Time (hours)	50000
Product Weight(kg)	9.5
Type	Beam Lights
Input Voltage(V)	100-240V - 50/60Hz
Lamp Luminous Flux(lm)	>10000lm
CRI (Ra>)	90
Working Temperature(ºC)
Working Lifetime(Hour)	100000
IP Rating	65
Place of Origin	China
	Guangdong
Brand Name	Dragonstage
Emitting Color	20 x 15W RGBW 4in1
Application	Theme Park
Light Source	Halogen Bulbs
Warranty(Year)	2-Year
Application	Club.stage
Product name	Modern Linear Lighting
Feature	Easy Installation
Keyword	outdoor linear lighting
Name	modern led linear lighting
Control mode	DMX, Auto, Master-slave
LED Light Source	20 x 15W RGBW 4in1
Power	400W
Package	1270x320x220mm
Light style	Pixel-mapping, Multi-layer, dynamic patterns

Specifications
Power supply: 100-240V - 50/60Hz
Power consumption: 400W
LED power: 300W
LED source: 20 x 15W RGBW 4in1
Optic: High efficiency optic system
Effect: 80.Pixel Control RGBW
Luminous flux: >10000lm
Field angle: 6° (optional 8°,12°, 15°, 25°, 45°)
Dimmer mode: 8&16 Bit
Dimmer curve: Linear, curve
DMX mode: 11,27,80,91CH
Control mode: DMX, Auto, Master-slave
Protocol: DMX, RDM
Light style: Pixel-mapping, Multi-layer, dynamic patterns
Structure
IP rating: 65
Body: Die-cast aluminum
Free light CON: Yes
Stand CON: 2 Max.
Hang drop CON: 4 Max.
Rotation 360: Yes
Working Condition: -30° ~ 70°C
Connection
Power: True1 in & out
DMX: 3pin DMX in & out
Power cable: CCC 2.5mm2, 8 power link Max
Power and DMX cable type: Customized
Box Info
- Quick lock omega brackets
- Safety cable
- Floor stand
- Power & DMX cables
Carton: 2 in 1, Case: 4 in 1 or 8 in 1
Light: L1004 x W96 x H130(Bracket H178) mm
Carton size(2in1): 1270x320x220mm
Light Net Weight: 9.5KG (Gross 2in1 22.5KG)
Optional Accessories
- PMMA froster
- PMMA cover
- Barndoor
- Infinite rotation engine
- Clamp
- Flight case

---
