China Machine Factory Ultrasonic Portable Hot Fix Rhinestone Machine

Product Description

China machine factory ultrasonic portable hot fix rhinestone machine
Ultrasonic rhinestone fix setting machine/ rhinestone hotfix applicator
The ultrasonic hotfix rhinestone machine can quickly generate high temperature and drop the heat energy according to the principle of ultrasonic mechanical energy and heat energy conversion, thus smelting the glue at the bottom of the rhinestone and binding with the material.It features solid binding without glue, and is the product with the best effect of hotfix rhinestone in the market without hurting the material, it doesn't need preheating, and the production capacity is about 60 rhinestones per minute.

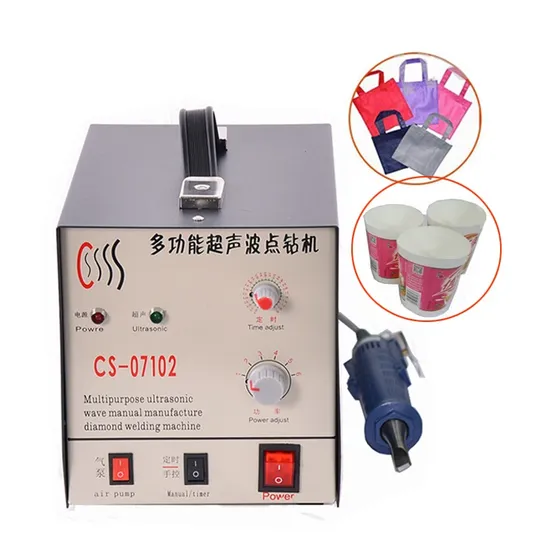

Machine Structure:
1.Mainframe machine
2.Transducers
3.Timing(senconds)
4.Power adjustable
5.Power switch
6.Timing switch
7.Air pump switch
8.Working indicator
9.Power indicator
10.Dismounting tips
11.Tip
12.Ultrasonic control switch
13.Output wire of ultrasonic signal
14.Air intake tube( 180cm )
15.Handle
16.Different size tips(Seven tips :#6/ # 10/ # 12/ # 16/ # 20/ # 30/ # 40)
17.Cooling fans
18.Output interface of ultrasonic
19.Interface of air intake tube
20.Power interface
21.Fuse box(1A)
Technical Parameters:
Manual ultrasonic rhinestone hotfix machine parameter of material & stone & power & time & pressure:

Stone size	Stone diameter(mm)	Time(s)	Power(gear)	Pressure(kg)
Ss6	1.6-1.8	0.1-0.15	1	1
Ss8	2.2-2.4	0.1-0.15	1	1-1.5
Ss10	2.6-2.8	0.1-0.15	1-2	1.5-2.5
Ss12	3.2-3.4	0.1-0.20	1-2	2-2.5
Ss16	3.6-3.8	0.2-0.30	2-3	3-4
Ss20	4.5-4.8	0.2-0.30	2-3	3.5-4.5
Ss30	5.5-5.8	0.2-0.35	3-4	4-5
Ss34	6.5-6.8	0.3-0.40	3-4	4.5-5.5
Ss40	7.5-7.8	0.3-0.50	3-5	4.5-6

Procedures:
1.Open power switch
2.Open Aire Pump Switch(Used to suck up stones)
3.Open manual control/timing switch
4.Power regulation:Control ultrasonic outpot strength,thicker material higher power
5.Adjust time between 0.1-0.3s,(ss30-ss40 about 0.2-0.5s)

6.Hotfix/welding procedure:
Suck up stone
Put on fixing position vertically
Press switch
Work light off
Loosen Switch
Suck up a stone (again and again)
Accessories Including: 1.180cm power line 2.150cm ultrasonic signal output line
3.28Khz transducer 1 piece
4.English manual service
5.A whole set welding/hotfix heads
(Seven tips :#6/ # 10/ # 12/
# 16/ # 20/ # 30/ # 40)
6.2pcs filter
We set the machines with different plugs according to the market for our customers.
Our machines have been tested in abroad markets, please assured to buy it.

---
