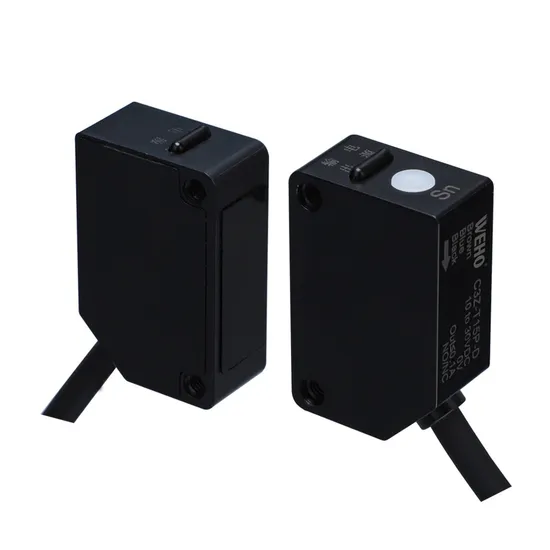

C3Z Photoelectric Switch Visible Light Non-Laser Diffuse Reflection Reflective Feedback Through-Beam Sensor Features:
5.Multi-Protection:Polarity Protection,Over-Current Protection
| Specification | Diffuse reflective | Reflectional | Visible light Directional type |
| NPN | C3Z-D100N | C3Z-R3N | C3Z-T15N |
| DC PNP | C3Z-D100P | C3Z-R3P | C3Z-T15P |
| Detection distance1 | 100cm(Adjustable) 3m(Adjustable) 15m(Adjustable) |
| Sensitivity adjustment | One-touch button setting |
| Standard detection object | 10×10cm White non-glossy paper Reflector TD-08 5×5mm Non-transparent objects |
| Detectable objects | Reflecting object | Non-transparent objects |
| Responsetime | 2ms |
| ReturnDifference | Less than 15%of detection distance |
| Supply Voltage | DC10~30V |
| Operating current | Load current≤100mA;Static current:DC(NPN)≤25mA,DC(PNP)≤35mA |
| Residualvoltage | ≤2V |
| Protection circuit | DC(NPN,PNP):Polarity,overcurrent protection |
| Indicator light | Green power indicator,red action indicator |
| Ambient illuminance range | Incandescent:Spot intensity under 3,000Lx;Sunlight:Spotintensity:under 10,000Lx |
| Temperature range | Operating:-25~+70ºC(no icing,condensation);Storage:-30~+70ºC(no icing,condensation) |
| Humidity range | Operation,storage:35~85%(no condensation) |
| Sensing surface materia | PC |
| 1.Detectiondstancerangevalue±10%2.RespnsefreguengjisveragevalueMeasurementcondtions:Useastandard detectionobject andsethedistancetol/2ofthe detectiondistance |
