6kw 8kw 10kw 12kw Ipg Raycus Max Fiber Laser Cutter Full Cover High Power CNC Metal Fiber Laser Cutting Machine for Agriculture Machinery Aerospace Industry

Product Description

6KW 8KW 10KW 12KW 20KW Full Cover High Power Metal Fiber Laser Cutting Machine
Machine Characters
Hollow plate welded heat dissipation bed. The special bed for the ultra-high power laser cutting machines is made of high-strength steel. The cutting area is hollow to prevent the machine from overheating and deforming. Provide a strong guarantee for customers to realize long-term batch cutting of medium and thick plates.

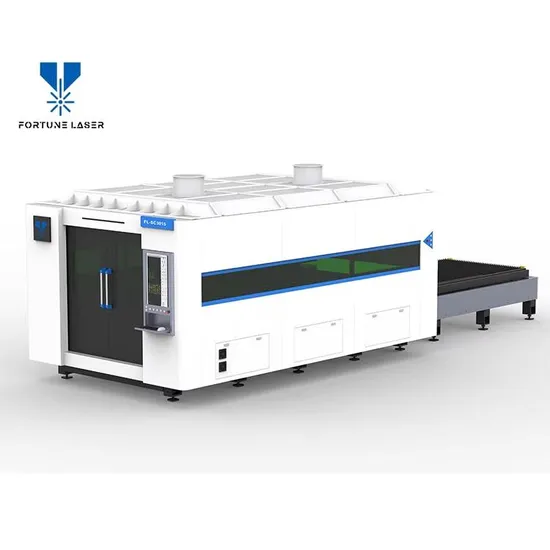

Full protection cover. The front and back of the protective cover are equipped with built-in cameras and use the intelligent central control system to monitor the operation. The European CE standard OD4+ level protective glass observation window, thickened sheet metal protective cover, safe production.
Germany Precitec autofocus laser head: Lightweight design, fast acceleration, the monitoring data can be read on the mobile terminal or CNC system, autofocus is simple, fast, and more precise. Non-inductive perforation, high-speed operation, flexible cutting of different materials, and thickness of plates.
Fast swap: Equipped with a six-sided steel track, the pulley, and the track are inlaid closely, and the built-in pulley runs smoothly. The fastest exchange speed can reach 10s for a complete exchange. Save time and cost for your projects.
The operation is simple and easy to use: Use a powerful control system specifically for laser cutting machines. Comprehensive diagnosis functions to find faults quickly. The corresponding process database can be set according to different materials and thicknesses, efficient automatic nesting function. Support contour inspection and complex graphics repair functions. Automatically optimize the cutting path. Follow the intelligent lifting and leapfrogging function to make the machine more flexible and accelerate faster.
Top brand fiber laser: Use stable and reliable power top brand laser, performance guaranteed;

Machine configuration
Model	High Power Fiber Laser Cutting Machine FL-U Series
Laser source	6000W-20000W Raycus/Max/IPG
CNC Cutting System	Professional CNC cutting system
Laser head	Precitec/OSPRI/Gangchun//Raytools
Machine bed	Fortune Laser
X/Y axis gear rack	YYC
Precision linear guide	HIWIN
Motor Drive	Japan Yaskawa Servo motor
Electronic components	France Schnei der
Pneumatic components	Japan SMC
Machine bed accessories	Fortune Laser
Water chiller	Hanli/Teyu

Note: This machine configuration is only for your reference, many other brands for each part of the machines are optional based on your requirements and your budget. Please feel free to contact us for more details. Machine Parts
Strong machine lathed bed
The lathed bed is after aging treatment: 1600ºChigh temperature heat treatment, 24 hours with furnace cooling and precise co2 protection welding, which ensures along-term stability and no deformation.
Aerospace-grade aluminum gantry
Aerospace-grade aluminum light quality, high speed, good dynamic response, fast acceleration.
Beam as a whole by the finite element analysis optimization of high rigidity, lightweight design, and durable.
Precitec Laser Head
High cutting speed
Excellent quality of the cut edges
Intelligent sensor technology for stable processes
Cypcut control system
Cypcut controller is designed for sheet metal processing industry launched a full-featured open-loop control system.
Easy installation, easy adjustment, excellent performance, and complete solutions are popular fiber laser cutting machine control systems.
Machine Parameters

Model	FL-U3015/FL-U4020	FL-U6020/6025	FL-U8020/8025
Laser Source Power	6kW-20kW	6kW-20kW	6kW-20kW
Working Area (L*W)	3000*1500mm, 4000*2000mm	6000*2000mm/2500mm	8000*2000mm/2500mm
X/Y Axis Position Accuracy	±0.05mm/1000mm	±0.05mm/1000mm	±0.05mm/1000mm
X/Y Axis Repeat Position Accuracy	±0.03mm	±0.03mm	±0.03mm
Max Moving Speed	120M/min	120M/min	120M/min
Max Acceleration	1.2g	1.2g	1.2g
Machine Dimension (L*W*H)	8502*2600*2100mm	14000*3500*2200mm	16000*3500*2200mm
Max Loading Weight	600kg	3200kg	3200kg
Machine Weight	2000kg	10000kg	12000kg

Applications
Aerospace, rail transit, shipbuilding, automobiles, construction machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, food machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchenware and sanitary ware, decorative advertising, laser external processing Services and other machinery manufacturing and processing industries.

---
