300m Cable Well and Borehole Camera for Sale with 360 Degree Rotate

Product Description

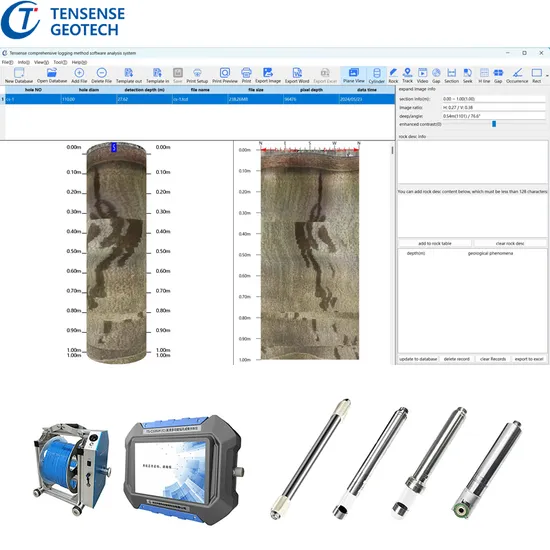

The TS-C1201H(C) HD High-Definition Multifunctional Borehole Imaging Analyzer represents the pinnacle of underground exploration technology, seamlessly amalgamating borehole imaging, borehole peeping (video recording), and borehole trajectory detection into a single, high-definition optical detection system. Engineered to facilitate comprehensive geological surveys and structural analyses, this state-of-the-art device is designed to provide detailed, high-resolution imaging of subterranean formations, ensuring precise and reliable data acquisition for a wide range of drilling applications. Application Borehole Imaging and Documentation: The device is primarily used for full-hole wall imaging and recording within drill holes. It captures high-definition images and videos of the borehole walls, allowing for detailed documentation and analysis of subsurface geological formations. Trajectory Measurement: It measures the spatial trajectory of boreholes, which is crucial for understanding the path of drilling and for accurate positioning of the drilling rig, especially in complex geological environments or for directional drilling. Fault and Fracture Analysis: The analyzer observes and documents the occurrence and development of faults and fractures. This is essential for assessing the stability of rock masses and for identifying potential risks associated with geological structures. Hydrogeological Investigations: The equipment is capable of detecting water-bearing faults, grikes, caves, aquifer outlets, and water-flowing fissure zones. This is vital for hydrogeological studies and for the management of groundwater resources. Rock Stratum Analysis: It allows for the observation and quantitative analysis of the strike, thickness, inclination, and dip angle of rock strata and other ore bodies. This information is crucial for mining operations and for understanding the geological structure of an area. Measurement of Geological Structures: The analyzer can measure the thickness, width, strike, inclination, and dip angle of strata or various geological structures from the imaging plan, providing valuable data for geological mapping and structural analysis. Differentiation of Geological Bodies: The device can distinguish between different geological structures such as ore bodies, rock masses, dirt bands, and soil layers, which is essential for accurate geological interpretation and resource estimation. Applicability to Various Borehole Types: The TS-C1201H(C) is designed to be used with different types of boreholes, including horizontal, vertical, and inclined boreholes, making it a versatile tool for a wide range of drilling projects.

Item No.	Product Name	Specification	Quantity
1	Host		1
2	Probe	φ40mm/φ52mm/φ65 mm	1
3	Depth Counter		1
4	Electric Winch	0~300 meters	1
5	Host-Winch Cable		1
6	Host-Depth Counter Cable		1
7	Host Charger		1
8	Probe Charger		1
9	Data Transmission Cable		1
10	Vacuum Sealing Grease		1
11	Package Box		1
12	Spare Sealing Ring		10
13	Software Flash Drive		1
14	Certificate of Conformity		1
15	Manual		1

---
