Wire Saw Cutting Machine Quarry Stone Cutting Diamond Wire Saw Machine for Granite Quarry

US$5.00-30.00 10 Pieces (MOQ)

Basic Info.

Size

44/40X3.2X15 (20)

Transport Package

Carton

Trademark

Dafon

Origin

China

HS Code

8464101000

Product Description

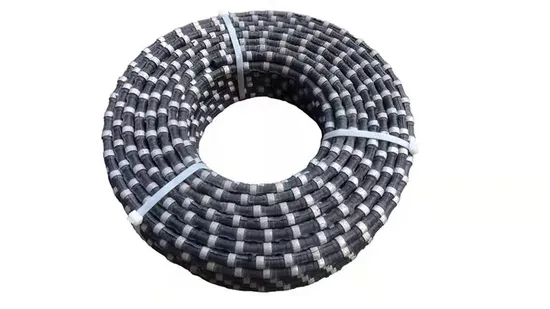

Description of Diamond Wire Saw
Type: Wire saw machine tool parts
Raw material: Diamond
Application: Quarrying, block squaring, profiling, Concrete
Reinforcement: Rubber,Plastic, Spring
Other name: diamond wire rope, diamond rope saw

What The Data of your diamond wire saw In Cutting Granite

Diameter	Beads/m	Reinforcement	Hardness of stone	Speed		Life(m2/m)
				(m/s)	(m2/h)
φ8 φ9	37/40pcs	Plastic Plastic+Spring	Soft	24-28	10-20	15-20
			Medium hard	22-26	8-15	10-15
			Hard	20-24	7-10	8-12
φ10.5 φ11 φ11.5	40pcs	Rubber Rubber+Spring	Soft	25-30	15-25	20-30
			Medium hard	22-25	10-15	15-25
			Hard	18-22	8-12	10-15

What The Data of your diamond wire saw In Cutting Marble

Diameter	Beads/m	Reinforcement	Hardness of stone	Speed		Life(m2/m)
				(m/s)	(m2/h)
φ8 φ9	37/40pcs	Plastic Plastic+Spring	Soft	30-35	20-30	30-40
			Medium hard	28-32	15-25	25-35
			Hard	26-30	10-20	20-30
φ10.5 φ11 φ11.5	40pcs	Rubber Rubber+Spring	Soft	36-38	25-30	35-40
			Medium hard	34-36	20-25	25-30
			Hard	30-32	15-20	20-25

What The Data of your diamond wire saw In Cutting reinforced concrete

Diameter	Beads/m	Reinforcement	Hardness of stone	Speed		Life(m2/m)
				(m/s)	(m2/h)
φ10.5mm φ11mm φ11.5mm	40 pcs	Rubber Rubber+Spring	Highly Reinforced Concrete	22-28	2-5	5-7
			Normally Reinforced Concrete	20-22	1.5-3	2-4
			Steel/Metal structure	18-20	0.5-2	1-3

Diamond Hand Saw Diamond Wire Saw Diamond Wire Rope for Stone and Concrete Cutting

Application	For Stone Quarry, Block Squaring&Chamfering, Profiling Cutting For Cutting Reinforce Concrete
Diameter Of Beads	11.5mm, 11mm, 10.5mm
ProduceTechnology	Sintered
Coating Fix Injection	Rubber, Rubber+Spring
Beads/Meter	40beads/meter
Attention	1. Checking the saw regularly and adjust timely. 2. Checking the pearl abrade regularly,Avoid the eccentric wear 3. Checking the joint regularly and adjust timely. 4. The tension of ropes is 250-300kg(Φ4-5mm ropes) 5. Water supply is around 15-25L/min
Feature	1. Very less breakage ratio when using therefore increase the working lifetime. 2. Automatic production ensures stable quality performance. 3. Safe, high efficiency and environment protecting.

Advantages of rubber wire used in granite & marble quarrying. The rubber and cable sticking together tightly makes good bonding and this can be more strikes during the work. The rubber has good temperature resistance, and it can be used when water is not enough.
Strong flexibility can reduce the cut-in-one-side problem, and even can be used for smaller curvature radius. Normally wire saw machines with 37-75 kw are used in granite & marble quarrying, according to the size of cutting area, water supply can be controlled with 25-50 L/min.

Advantage

Character & advantage of Diamond Wire Saw
1.High effection, low cost, low waste
2.Cutting smooth and process accurate
3.Safe and environmental protection
4.Can cut a big and regular stock
5.Factory with more than 15 years experience in diamond tool industry
6.A large number of exports to Eastern Europe, North America, South America, the Middle East, Australia and other overseas markets, product quality has been recognized by overseas customers.
7. Low cutting cost: compared with the traditional mechanical cutting, stone rope saw cutting cost is lower, so as to help users save costs.

Main Features

1. Connected by best qualityof Rubber,Spring,Plasticoto
2. Germany-Made SteelCable
3. Beads produced byhigh percent of Cobalts
4. High grade of Diamond
5. Pre-sharpened Diamond Beads
PS: Other specifications can be customized according to requirement.

Item Detail:

After Sales Service

We provide skilled and rich experience technician for installation and after-sale service.

Pre-Sales Service
* Inquiry and consulting support.
* Configure the best machine line according to customer condition
* View our Factory.

After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Lifetime technology maintenance in free and spare parts supply.
Related Products

Packaging & Shipping

The machine will be consolidated tighly and safely within container and deliver by sea or railway, we offer fast delivery and prompt react.

FAQ

Q: How do I install and operate the machine, after receiving it?
A: For simple machine, we will provide sufficient installation, operation and maintenance instruction and videos, which will make the whole thing as simple as possible for users. For high-tech machine, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.
Q: Are you manufacturer or trading company?
A: We are manufacturer that has our own factory, technical Dept., marketing and after sale service teams.
Q: What is your advantage?
A: Firstly we are manufacturer, you could get best price without paying any commission. Secondly, we provide advisory machinery, debugging, maintenance and fault handling package of services. Thirdly, we offer customized overall solutions and one stop service. Both of our machine and diamond tools are excellent. Fourthly, we give you technology support on not only machine, but also diamond tools. Finally, better and lower cost after-sale service could be provided thanks to our worldwide network.
Q: When can you ship my order?
A: Normally 15-20days after advanced payment is received. The exact delivery date will be advised after order is confirmed. We will try our best to deliver soonest, if you need them urgently.

Company Profile

Quanzhou Dafon Machinery Co., Ltd., located in Shuitou Town, is a professional stone machinery enterprise integrating design, manufacturing, and sales. Mainly produce curbstone assembly line equipment, Infrared bridge cutter, automatic edge cutting machine, Infrared middle bridge cutter, single arm block cutter, bridge block cutter, mining machine, and other types of stone machinery.The company has advanced mechanical processing equipment, standardized workshops, a strong technical force, efficient research and development team, and rich experience in stone machinery production, which make the company continue to be at the forefront of stone machinery. Relying on the advantages of strong industrial clusters, the company provides customers with free one-stop solutions for the stone industry (granite), including mining planning guidance, technical consultation, technical output, equipment procurement, processing, construction guidance, etc. As long as you invest in the stone industry, we provide you with a series of professional services.
