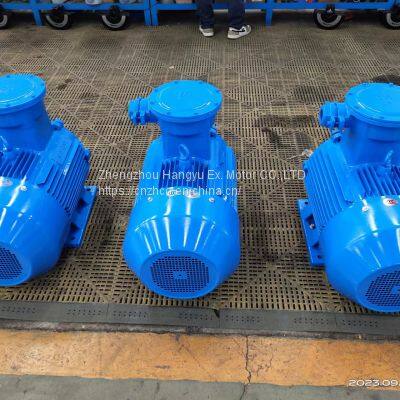

Explosion proof three-phase asynchronous motor YB ,YB2，YBX4， 75KW flameproof electric motor

Product Details

Product Description

Product Description
YB3 Explosion proof three-phase asynchronous motor YB ,YB2，YBX4， 75KW flameproof electric motor

Frame size	Output (Kw)	Current (A)	Speed (r/min)	Efficiency (%)	Power factor (cosφ)
Synchronous speed 3000r/min
100L-2	3	6.2	2870	84.6	0.87
112M-2	4	8.0	2890	85.8	0.88
132S1-2	5.5	10.9	2900	87.0	0.88
132S2-2	7.5	14.5	2900	88.1	0.89
160M1-2	11	21.0	2940	89.4	0.89
160M2-2	15	28.4	2940	90.3	0.89
160L-2	18.5	34.7	2940	90.9	0.89
180M-2	22	41.1	2950	91.3	0.89
200L1-2	30	55.7	2950	92.0	0.89
200L2-2	37	68.3	2950	92.5	0.89
225M-2	45	82.7	2960	92.9	0.89
250M-2	55	100.7	2970	93.2	0.89
280S-2	75	136.5	2970	93.8	0.89
280M-2	90	163.3	2970	94.1	0.89
Synchronous speed 1500r/min
100L1-4	2.2	4.9	1420	84.3	0.81
100L2-4	3	6.5	1420	85.5	0.82
112M-4	4	8.7	1430	85.6	0.82
132S-4	5.5	11.6	1450	87.7	0.82
132M-4	7.5	15.5	1450	88.7	0.83
160M-4	11	21.9	1460	89.8	0.85
160L-4	15	29.3	1460	90.6	0.86
180M-4	18.5	35.8	1470	91.2
180L-4	22	42.4	1470	91.6
200L-4	30	57.4	1470	92.3
225S-4	37	70.5	1480	92.7
225M-4	45	85.4	1480	93.1
250M-4	55	103.9	1480	93.5
280S-4	75	137.8	1480	94.0	0.88
280M-4	90	164.9	1480	94.2	0.88
Synchronous speed 1000r/min
100L-6	1.5	3.9	930	79.8	0.74
112M-6	2.2	5.5	940	81.8	0.74
132S-6	3	7.4	970	83.3	0.74
132M1-6	4	9.7		84.6	0.74
132M2-6	5.5	13.0		86.0	0.75
160M-6	7.5	16.8		87.2	0.78
160L-6	11	23.9		88.7	0.79
180L-6	15	31.4	980	89.7	0.81
200L1-6	18.5	38.4		90.4	0.81
200L2-6	22	44.8		90.9	0.82
225M-6	30	61.4		91.7	0.81
250M-6	37	72.6		92.2	0.84
280S-6	45	85.8	990	92.7	0.86
280M-6	55	104.4	990	93.1	0.86
Synchronous speed 750r/min
100L1-8	0.75	2.4	690	70.0	0.67
100L2-8	1.1	3.4	690	72.0	0.69
112M-8	1.5	4.4	690	74.0	0.70
132S-8	2.2	6.0	710	79.0	0.71
132M-8	3	7.8	710	80.0	0.73
160M1-8	4	10.3	720	81.0	0.73
160M2-8	5.5	13.6		83.0	0.74
160L-8	7.5	17.8		85.5	0.75
180L-8	11	25.5		87.5	0.75
200L-8	15	34.1	730	88.0	0.76
225S-8	18.5	41.1	740	90.0	0.76
225M-8	22	47.4		90.5	0.78
250M-8	30	63.4		91.0	0.79
280S-8	37	77.8		91.5
280M-8	45	94.1		92.0
