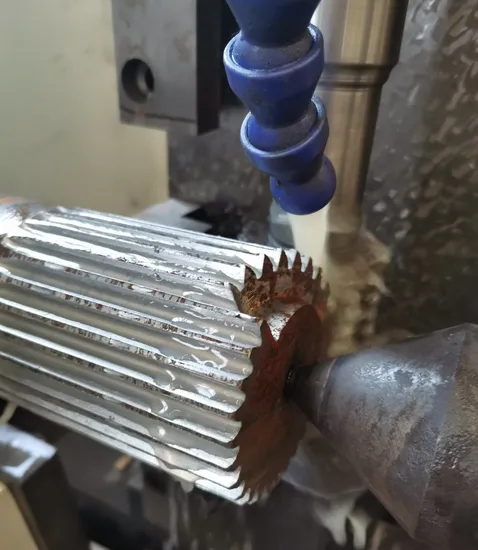

Hot Sale CNC Screw Spline Milling Machine for Gearhobbing

Product Description

SUMORE
Twenty years of experience in industry and trade integration. The fastest delivery cycle in the industry.
100% response rate of customer service online at any time.<view more>>> Product Description
Kangnuo Lgxm350 CNC Spline Milling Grinding Machine
* MACH & GSK & SIEMENS & FANUC Programming Systems
* Professional Electronic System
* Upgraded PC-based Controller
* High Rigidity Guide Way & Bed Construction
* Powerful Main Motor & Reliable Servo Motor
* High Precision for All Axes Movements
* Automatic Tool Charger & Multiple Tool Positions
* Cabinet Door Opening System & Considerable Safety Signs
Hot sale cnc screw spline milling machine for gearhobbing SPECIFICATIONS

item	content	unit
Machine tool use	Rolling spline
The length of the lathe bed	2700	mm
Bed width	800	mm
Bed guide rail type	Three guide
Maximum machining diameter	Φ150	mm
Minimum machining diameter	Φ20	mm
Maximum workpiece length	3000	mm
Maximum machining modulus	5	mm
Maximum milling spline length	5600	mm
Milling head motor power	7.5Servo spindle motor	KW
Milling head motor speed	1500	r/min
Milling head reduction ratio	1:10	reference
Milling head tool shaft diameter	Φ32	mm
Headstock spindle through hole diameter	Φ130	mm
Spindle diameter of tailstock	Φ130	mm
Maximum stroke of tailstock sleeve	150	mm
Tailstock sleeve mounting taper hole	6#Morse # 6
Number of servo control shafts	Workpiece rotation (C-axis)
	Transverse saddle (Z axis)
	Longitudinal slide (X axis)
Numerical control system	Four axis and three linkage
C axis motor	30	Nm
C axis drive type	Worm gear and worm	domestic
C axis transmission ratio	1:30
Maximum speed of axis C	50	r/min(CVT)
C axis positioning accuracy	8	Angle of seconds
C axis chuck specifications	K72-315-A28
X axis motor	18	Nm
X axis ball screw specifications	5010	domestic
X axis guide rail pair type	55 ° dovetail	CHINA
X axis positioning accuracy	0.01	mm
The Z axis motor	30	Nm
Z axis ball screw specifications	8010
Z-axis bed saddle guide rail pair type	Mountain track + horizontal track	CHINA
Cooling water pump	High pressure water pump	450W
Machine tool dimensions	2500×1800×2100
Machine weight	≈2.5	ton

PRODUCT CONFIGURATION

A2-6 4500 rpm spindle

GSK Control system

8-station servo hydraulic tool

Hydraulic chuck

Ball screw and line track

A convex and a flat tailstock design

GSK control operating system A2-6 4500 rpm spindle 8-station servo hydraulic tool magazine Automatic tool change in 2 seconds Ball screw and line track
A convex and a flat tailstock design Other Optional configuration

SYNTEC 22MA

FANUC

SIEMENS

HNC808DM

Hot Sales Recommend Products

No.	Product Name	Specifiations	Stock Qty	Stock price
1	Kangnuo Nxk350 Milling CNC Machine CNC Thread Whirling Machine	3000-8000mm	2	>>
2	Kangnuo Crm-260 CNC Shaping Grinding Machine	2000-3000mm	1	>>
3	Kangnuo Lgm140-2000 5 Axis CNC Spiral Rotor Grinder CNC Grinding Machine	1500-5000mm	3	>>
4	Kangnuo Lgx320-2000 CNC Spiral Rotor 5 Axis Linkage Milling Machine	2000-6000mm	2	>>
5	Kangnuo CNC Machine Design 3 Axis Screw Milling Machine	1000-10000mm	5	>>
6	Kangnuo CNC Special Roots Pump Rotor Milling Machine	3000-6000mm	6	>>
7	Kangnuo Lgxm350 CNC Spline Milling Grinding Machine	1000-4000mm	2	>>
8	Kangnuo Internal Outernal Thread Milling Cutting Processing Machine	1000-9000mm	10	>>
9	2022 5 Axis Kangnuo Ground Marble Plane CNC Camshaft Milling Grinding Machine	1000-7000mm	5	>>
10	2022 Kangnuo Stock Turning Milling Compressor Rotors 4 Axis T-Shape Bed CNC Milling Machine	1000-10000mm	20	>>
11	2022 Kangnuo Stock 5000mm Screw Milling Machine for Extrusion Industry	2000-10000mm	14	>>
12	2022 Kangnuo Stock 2000mm screw processing 100 diameter small screw milling machine for Precision laboratory granulator	1000-4000mm	3	>>
13	2022 Kangnuo Stock CNC Lxck350-4000 1000mm Bed Width Four Rails Screw Milling Machine Screw Milling Machine	2000-8000mm	7	>>

Assembly Process and Quality Control

Each contact surface of the workpiece is manually scraped to ensure the precision of the machine.	Line guide rail installation, using code meter accuracy test.	Installation details of inclined track
Screw installation process	Screw installation process	Electrical system configuration box

lectrical system configuration box


Company Profile and Picture
Cangzhou Kangnuo CNC Machine Tool Manufacturing Co., Ltd. is located in Botou CNC machine tool Industrial Park, Hebei Province, the company is located only three kilometers away from the Nanpi exit of Beijing-Shanghai high-way, the traffic is very convenient. The company set r & D, design, production, sales, service in one, not only has a high-quality staff, but also has a strong product research and development team, after r & D improvement, our company now has a series of special CNC machine tools for processing spiral workpiece.Machine stable performance, high technology content, and a number of well-known enterprises to maintain long-term cooperation.
CERTIFICATIONS
CE , SGS, ****** High-quality Supplier and Made-In-China Gold Supplier.
FAQ
1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .

2:What's your main products of your company?
A: We specialized in machines ,such as CNC screw milling machine ,vacuum pump screw special CNC spiral rotor milling machine,Turning Milling Machines .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Botou CNC machine tool Industrial Park, Hebei Province China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
