Basic Info.
Model NO.
DM- 40-C, DM- 50-C, DM- 60-C, DM- 70-B, DM- 80-B
Processing Object
Mixed Feed
Processing Technics
Feed Pellet Making Machine
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Single Screw Bulking Machine
Expanding Method
Dry Expansion
Applicable Materials Shape
Powder
Product Name
Animal Feed Pellet Plant
Usage
Animal Poultry Livestock Feeding
Feature
High Efficiency Automatic
Keywords
Fish Feed Plant Extruder Making Machine
Material
Carbon Steel Stainless Steel
Suit for
Pet Fish Food Production
Feed Types
Pet Fish Dog Food Feed
Transport Package
Standard Export Wooden Case
Specification
1360*1600*850mm
Production Capacity
30-40kg/H
Packaging & Delivery
Package Size
136.00cm * 160.00cm * 85.00cm
Package Gross Weight
350.000kg
Product Description

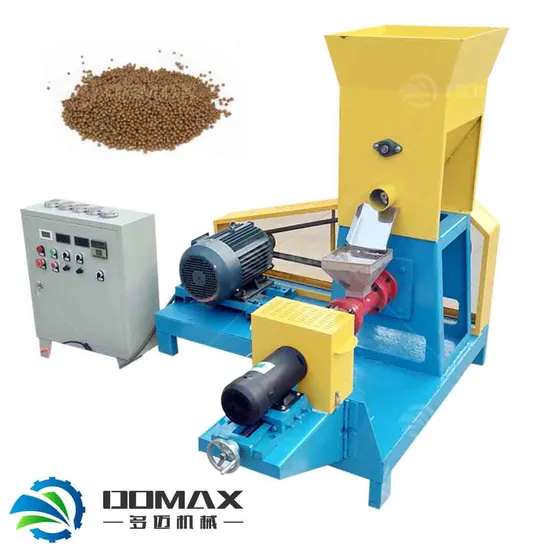

Automatic Poutry/Livestock/Cattle/Sheep/Duck/Fish/Pet Feed Extruder Sinking Shrimp Feed Pellet Machine
Product Description
Fish feed making machine is also named fish feed extruder, and it is used for processing for dogs (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Fish feed making machine mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food. The feed pellet size can be from 0.9mm to 10mm by changing the moulds.It is suitable for making feed for small fish to big fish.
Application
1.Feed extruder machine uses corn, soybean (bean cake) animal scraps, etc. as raw materials, and is suitable for the production of feed with different pet flavors such as dogs,fish, birds, rabbits, shrimps, dogs,minks, foxes, etc.
2.Feed extruder machine is suitable for farmers and small and medium-sized feed factories.The feed is neatly formed and smooth, does not pollute water sources, and sterilizes to reduce fish diseases.
3.This machine can also be used to make puffed snacks.
Product Parameters
| Model | Screw Dia | Capacity | Main power | Feeding power | Cutting power |
| DM- 40-C | 40mm | 30-40kg/h | 5.5kw | 0.4kw | 0.4kw |
| DM- 50-C | 50mm | 60-80kg/h | 11kw | 0.4kw | 0.4kw |
| DM- 60-C | 60mm | 120-150kg/h | 15kw | 0.4kw | 0.4kw |
| DM- 70-B | 70mm | 180-200kg/h | 18.5kw | 0.4kw | 0.4kw |
| DM- 80-B | 80mm | 250-300kg/h | 22kw | 0.4kw | 0.4kw |
| DM- 90-B | 90mm | 300-350kg/h | 37kw | 0.6kw | 0.8kw |
| DM- 100-B | 90mm | 400-500kg/h | 37kw | 1.1kw | 1.5kw |
| DM- 120-B | 120mm | 500-600kg/h | 55kw | 1.1kw | 2.2kw |
| DM- 135-B | 133mm | 700-800kg/h | 75kw | 1.1kw | 2.2kw |
| DM- 160-B | 155mm | 1-1.2t/h | 90kw | 1.5kw | 3kw |
| DM- 200-B | 195mm | 1.8-2.0t/h | 132kw | 1.5kw | 3-4kw |
Features
1. The fish feed pellets can float on water for over 20 hours.And sinking and floating aqua-feed pellets both can be made just by adjusting the feed formulation.
2. Pellet diameter is 0.9mm-15mm by changing the mold.
3.The cutter can cutting the pellets into different length.
4.The feeding speed,cutting speed,temperature all can be adjusted.
5.The machine also can make feed for pet like dog with different shapes Detailed Photos
