2000L Seaweed Carbon Capture Reactor Equipment

Product Description

Product Description 2000L Seaweed carbon capture reactor equipment

ITEMS	DESCRIPTION	SPECIFICATION
1-1	Container body	1) Containing glass tube outside diameter of 60 mm/root length 2.8 meters, single capacity of about 6 L; 2) Back and forth each layer 2 root glass tubes, a total of 23 layer, the pipe capacity of about 1000L 3) Structure of aluminium alloy bracket and PVC pipe clamp
1-2	Buffer device	1) form a complete set of 1000L buffer column, barrel organic glass materials, gas exchange, harvesting, supplement nutrient solution. 2) PVC pipe is used to connect piping.
1-3	Drive	The configuration and the frequency converter low shear force circulating pump, used for pipeline cleaning, algae fluid circulation, flow range can be adjusted, voltage 380 v, the power of 0.75 kw
1-4	Pipe section	Reserved the interface: feeding, feeding and discharging, air inlet and vent, electrode temperature and pH electrode and dissolved oxygen electrode, etc
1-5	Electric control system	Form a complete set of control box, integrate all circuit, control instrument, switch, etc (optional configuration touch screen + PLC controller costs plus)
1-6	PH online monitoring and control	1) online monitoring PH value, the reserved 4-20 mA signal output interface, PH removing a electrode and accessories; 1-14 pH measurement range, precision of electrode ±1%;2) the peristaltic pump two, automatic acid or alkali;3) two time controller, control the working frequency of peristaltic pump.
1-7	LED light source	Full spectrum of white light source, the voltage DC24V,25w/m, timing and off, adjustable light intensity.
1-8	Temperature online monitoring	Online monitoring temperature, reserved 4-20 mA signal output interface, temperature electrode a; Measuring range of 0-100 ºC, electrode accuracy ±0.2
2-1	Stainless steel pipe (optional)	The standard configuration items of PVC pipe section replaced with 304 stainless steel pipeline,fees in addition to calculate
2-2	Stainless steel teeth gusset plate (optional)	The standard configuration items of PVC pipe section replaced with 304 stainless steel pipeline,fees in addition to calculate,

The algae PBR pipline bioreactor ,can make depend on customer 's requirements .from 5L-50000L.
For Chlorella, spirulina, Dunaliella salina,Schizosporophyta, all type algae culture . After then ,can use tubular centrifuge/disc stack centrifuge for algae solid harvest .
The pipeline photobioreactor can be customized:
1. Different pipeline photobioreactor structures can be designed according to the different algae cultivation of customers, and the capacity can be increased or decreased at will, which is suitable for laboratory or large-scale industrial use. 2. Material selection can be plexiglass (acrylic, PMMA) or boric acid glass
3. Provide suitable circulating pumps in industrial large-scale algae culture pipeline reactors (selection of large flow,
continuous work, no shearing force on algae cells)
4. Design ventilation and gas control devices
5. Good and reliable anti-leakage and detachable solutions
6. Provide various indicator detection and recording functions, and provide other output connection methods such as lab view or serial port.
The driving mode of the pipeline photobioreactor can be combined with multiple operation driving modes:
1. Reduce dissolved oxygen and increase carbon dioxide 2. Reduce energy consumption, solar panels can drive the system to run 3.Reduce cell adhesion to the wall and clean the inner wall of the pipeline 4. Choose a reasonable drive mode according to cell characteristics

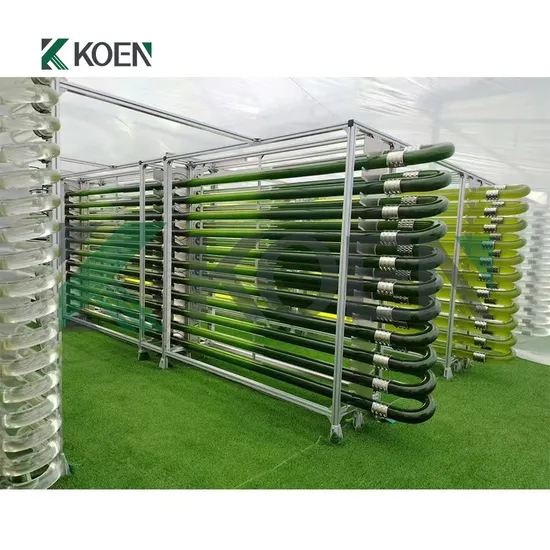

A)Parallel pipeline circling pipe structure photobioreactor
B)Vertical structure pipeline photobioreactor C) Pond structure
Company Profile Liaoning Koen Machinery Co.,Ltd ,We are the professional manufacturer of centrifuge machinery, separation equipment over 30 years,we have 4 factory which located in Shanghai , Jinhua ,Yixing and Liaoyang city . Our president was designed and manufactured China First Tubular Centrifuge .Our factory covers an area of 58, 700 square meters, including 38, 600 square meters of workshop area, 4, 000 square meters of office building and 2100 square meters of science and technology building. The company has been committed to the production of domestic advanced disc and decanter centrifuges, with an annual output of 4000 sets of production capacity. The company also specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer's requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our aim is providing you efficiently solution and superior after-service. We have overseas after-sales service department in Taiwan ,Russia ,Korea ,USA,Thailand,Malaysia and Indonesia . We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries.
