Basic Info.
Certificates
CE FCC RoHS SGS
Surface
Wiredrawing Aluminum+Tempered Glass
Touch Screen
10 Point IR Touch Panel
Resolution
1920X1080 Support 4K 3840*2160
Installation Way
Wall Mounted (Floor Stand Optional)
Screen Size
35/50/55/65/75/86/ 96 Inch Optional
Transport Package
Carton Box+Wooden Case
Specification
1736.2*1059.7*107.5 mm
Production Capacity
5000PCS/Month
Product Description

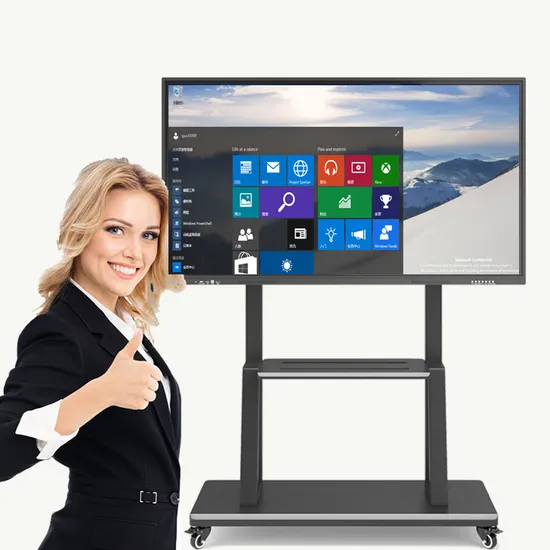

Touch Screen Smart Board is an interactive TV, it built-in with LCD/LED and touch screen (and PC for optional). We use the most popular technology infrared touch to achieve interaction between users and the monitor.
All in one touch monitor is also a LCD whiteboard, use the LCD to instead of the projector for image presentation.
Connect with built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement, conference PPT, classroom courses, play movies and etc…
| LCD Panel | |
| Availabe Size | 55 inch / 65 inch / 75 inch / 86 inch / 96 inch |
| Screen Type | TFT-LCD |
| Panel Brand | LG/AUO/CHIMEI/BOE |
| Aspect Ratio | 16:9 |
| Resolution | 1920x1080 (Support 4K) |
| Brightness | 450cd/m2 |
| Contrast Ratio | 2000:1 |
| Lifespan | 50,000 hours |
| Touch Screen |
| Touch type | Infrared |
| Touch condition | Finger, touch pen |
| Touch points | 10 points |
| Response time | <10ms |
| Touch accuracy | ±2mm for 90% area |
| Screen protection and safty | AG toughened glass |
| Built-in Computer System |
| Windows Pc | OPS Micro-computer (Pluggable type and easy maintanance) Customized configuration is available |
| Processor | Intel core i3 / i5 / i7 optional |
| Memory | 4G / 8G optional |
| Hard Disk | 120G / 256G SSD, 500G/1T HDD |
| Android OS |
| Processor | Quad-core |
| RAM | 3G |
| ROM | 32G |
| Interface | USB/VGA/MIC/AUDIO/HDMI/RJ45/WIFI |
| Internet |
| Internet cable | Yes |
| WIFI | Yes |
| 4G | Optional |
| Appearance |
| Colors | Black, others color need to customize |
| Surface treatment | Powder coated |
| Shell material | Cold-rolled sheet |
| Screen position | Landscape |
| Installation | Floor stand |
| Other |
| Loudspeaker | Yes |
| Power input | AC100-240V |
| Accessories | Cable, plug, remote control |
| Installation ways | Mobile floor stand / Wall mounted |
FAQ
1.Q: Are you a factory or trading company?
-A: We are a OEM&ODM factory.
2.Q: What payment methods your company accept?
-A: We accept most of payment methods,but mainly accept T/T, L/C, Western Union and Paypal.
3.Q: How long is the warranty time for your products?
-A: Our officially promised warranty time is one whole year after delivery at best.
4.Q: I haven't done business with you guys before,how can I trust your company?
-A: And we've got quite a lot authority certificates,for example,CE,RoHS, FCC, ISO9001,etc.I hope those above will be persuasive enough.Our Trade Assurance Limit is US $500,000,and it is still going up.
5.Q: What's the shipment terms and delivery time of your company?
-A: Well,the depends on the quantity of your order.As you know ,we need time to manufacture the machines.But mostly, the shipment time is 3-8 working days after delivery.For delivery way,for Sample&Bulk order<100KG,we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order>100KG,as for detailed cost, it depends on your final order.
6.Q: Do you give me any discount?
-A: I'm surely try my best to help you get those by the best price and good service at the same time.
7.Q: I would like to ask you if it's possible to have my logo on the products.
-A: We hope you know that our company perfectly support customized logo service.But,we also hope you know it's an extra service,so a little bit extra service fee is needed.
>>
