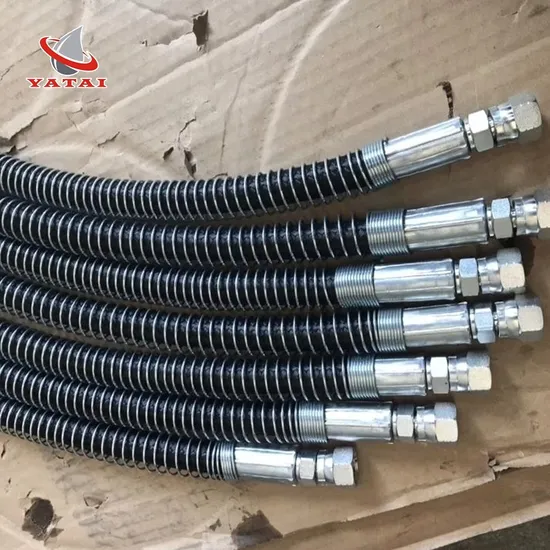

Renovl SAE 100 R5 Two Steel Wire Braided Hydraulic High Pressure Rubber Hose with Textile Cover

Product Description

RENOVL SAE 100 R5 Two Steel Wire Braided Hydraulic High Pressure Rubber Hose With Textile Cover
Product Description
SAE 100 R5 Textile Covered Wire Braided Hydraulic Hose
Tube: NBR
Reinforcement: One high tensile steel wire braid
Cover: One layer textile braid
Application: Suitable for use with petroleum-based hydraulic fluids
Temperature Range: -40Celsius ~+100 Celsius
Appearance: Smooth or wrapped
Color: Black or multiple colorsProduct Parameters

SAE 100 R5 TEXTILE COVERED WIRE BRAIDED HYDRAULIC HOSE
SIZE LD			0.D	W.P		B.P		B.R	L	W.T
Dash	Inch	Mm	Mm	Bar	Psi	Bar	Psi	Mm	M	Kg/M
-4	3/16"	4.8	13.0	210	3045	840	12180	75	50-100	0.22
-5	1/4"	6.3	14.6	210	3045	840	12180	85	50-100	0.26
-6	5/16"	7.9	17.0	157	2270	628	9130	100	50-100	0.31
-8	13/32"	10.3	19.3	140	2030	560	8120	115	50-100	0.36
-10	1/2"	12.7	23.3	122	1770	488	7100	140	50-100	0.49
-12	5/8"	16.0	27.2	105	1520	420	6090	165	50-100	0.65
-	3/4"	19.1	28.0	80	1160	320	4640	160	50	0.78
-16	7/8"	22.2	31.2	56	810	224	3250	185	50	0.85
-	1"	25.4	31.4	50	725	200	2900	300	50	0.89
-20	1.1/8"	28.6	38.0	43	620	172	2494	360	60	0.95
--	1.1/4	31.8	42.5	39	565.5	156	2262	420	60	1.00
-24	1.3/8"	34.9	44.3	34	493	140	2030	480	60	1.10
-	1.1/2"	38.1	48.5	30	435	120	1740	500	60	1.20
-32	1.13/16"	46.0	56.1	24	348	96	1392	530	60	1.42
-	2"	50.8	62.0	24	348	96	1392	560	60	1.65
-40	2.3/8"	60.0	75.0	14	200	56	840	610	20	1.90

Detailed Photos
Company Profile
FAQ
Q1. How can we guarantee quality?
A1.Always a pre-production sample before mass production.
Always final Inspection before shipment.
Q2. What is your sample policy?
A2.We can supply the sample if we have ready parts in stock, but the customers must pay for the sample and courier costs.
Q3. Can you produce according to the samples?
A3: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
Q4. Why should you buy from us not from other suppliers?
A4.For many years, we have been committed to the research and development of rubber and plastic products. Our R&D team has over 20 years of R&D experience. All of our products are produced directly from the factory. We accept OEM and ODM!
Q5.What are your main products?
A5.Our main products are all kinds of rubber hoses including Hydraulic hoses, air hoses, welding hoses, sandblast hoses, suction and discharge rubber hoses, and PVC hoses, including PVC Lay flat Hose,
Q6. Could we pay a visit to your factory?
A6.Yes, you are always welcome to visit our factory.

---
