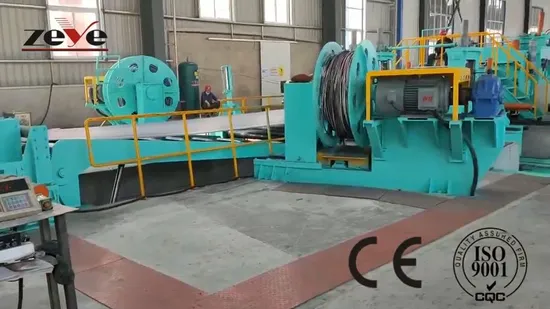

Thick 16mm Hr, Ss400, Q345, Q235 Steel Coil Slitter Line, Decoielr Machine, Slitter Rewinder From Zeye

Product Description

Slitting line ZSL series Slitting line is mainly used for metail coil shear recoiling process from decoiling,feeding, head shear, loop, slitting to recoiling.
Its function is to shear wide metal coil longitudinlly into narrow coils, many kinds of material are availble to shear, such as,
cold rolled plate, electrolytic galvanized plate, hot dip galvanized plate, color-coated plate, stainless steel plate, aluminum plate, cooper plate etc.
Main Units
1.Entry coil car,
2.Uncoiler,
3.Feeding device,
4. Hydraulic head shear,
5.Looper,
6.Slitter machine,
7.Scrap winder,
8.Looper,
9.Tension device,
10.Recoiler
11.Exit coil car.
Slitting Line Layout

Main Technical Parameters

Model	ZSL-6	ZSL-8	ZSL-12	ZSL-16	ZSL-20/25
Material thickness	1.5-6.0mm	2.0-8.0 mm	3.0-12 mm	4.0-16.0 mm	6.0-20/25 mm
Material width	300-1600 mm	300-1800 mm	300-2000 mm	300-2000 mm	300-2200 mm
Slitting quantity	30	25	25	20	20
Width accuracy	±0.10 mm	±0.10 mm	±0.20 mm	±0.20 mm	±0.20 mm
Cutting burr	<3%	<3%	<3%	<3%	<3%
Winding split level floor	<1 mm	<1 mm	<1 mm	<1 mm	<1 mm
Line speed	120 m/min	100 m/min	80 m/min	60 m/min	60 m/min
Coil weight	20,30 t	20,30 t	20,35 t	20,35 t	20,35 t

Our advantages
1.Automatically detect the material parameter , one key to load coil, automatically centering adjustment.
2.Our parts of equipment are produced by Japan MAZAK, Spain CORREA cnc etc. the world class the most advanced processing equipments. Which can ensure to produce out high precision parts.
3. Every part has been finished it's own complete technology process, such as forge, rough machined, heat treatment, cooling, burring, tempering, finish turning , milling, drill, thread tapping, match pin, surface quenching,coat the anti-rust oil, fine grinding, test ,entry warehouse, which ensure every part meets it's the best performance.
4.Strictly inspection every section during production and assembly process, to ensure every part to be used is qualified, to make sure to produce high precision cutting machine for end users.

Part of our customers Due to enjoy the high reputation of our shearing products, we have supply our cutting lines to POSCO, BAOSTELL, MA STEEL,ANSTEEL, DELONG STEE, SHAN STEEL,SINOTRUCK, CRRC, CHERY, CHANGFENG MOTOR, HRA ,OBON,SIEMENS, MCC, BOSCH, SANDEN etc. famous companies. Company introduction
We have two companies, Shandong Zetian CNC Machine Tool Co., Ltd (short for "ZeTian" ) and Jinan ZeYe Machine Tool Co., Ltd ( short for "ZeYe") , ZeTian and ZeYe were founded by Mr.Hu. ZeTian is in charge of import and export business, ZeYe is in charge of production, which is located in Jinan city, Shandong Province, China, was founded in 1998.
We are mainly engaged in developing, manufacturing of Cut to Length Line, Slitting Line, Rotary Shear Line, Moving Shear Line, Slitting and Cut to Length Production Line, Slitting Recoiling or Cut to Length Compound Line and Leveling Machine. The cutting thickness range from 0.1mm to 25 mm, the width range from 300 mm to 3000 mm.
Our products are widely used in plate processing, household appliance, automobiles, pipe mill, mechanical, hardware etc. Industries. It could be application for processing cold and hot rolled steel, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminum, copper and other metals.
Our Shear Production Lines have been exported to Australia, Mexico, Ukraine, Vietnam, Philippines, Uzbekistan, Algeria, Ethiopia, Thailand, Dubai, Sudan, Brazil, Myanmar, Congo etc. 30 countries and areas. We have worked with POSCO, BAOSTEEL, ANSTEEL, SINOTRUK, CRRC ETC. famous companies.
We have one professional technical team and after sales service teams, we are ready to serve you at any time.
Welcome to visit our factory. FAQ
Q: Could you produce the shear line as per our specific requirements?
A: Yes, we are not only one professional manufacturer for 23 years,
but also we have one professional design & technical team, we can design and manufacture as your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detailed requirements, such as coil weight, material, width, processing precision etc.
Q: What's the MOQ, warranty... ...
A: MOQ: 1 set.
Warranty: 12 months after the equipment run normally .
For more information, please contact with us.

---
