US$3,000.00-4,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Knee Type Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Certification
CE, RoHS, ISO 9001
Vertical Travel(mm)
420mm
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description
DESCRIPTION OF GOODS

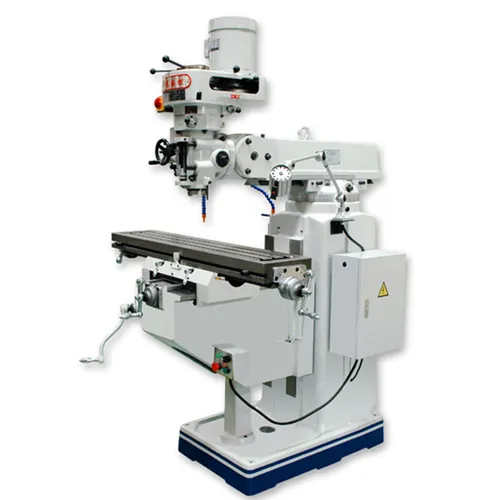

This machine tool has vertical , horizontal mill two kinds of function, the spindle taper hole may straight pass accessories install all kinds of column milling cutter, wafer milling cutter, molding milling cutter, end milling cutter and so on cutter, suitable for processing all kinds of the plane, the ;the incline, the groove, the hole ,the gear and so on of the medium and small size parts, and it is the perfect processing equipment for machine building, mold, apparatus, car, motor and so on industry
The slide way on the saddle is lined with TF wearable material both X axis and Y axis
| MODEL | XH6325 | XH6325D |
| Features | Rectangular guide way on Y/Z-axis |
| Table size | 305×1370 | 305x1370 |
| Table loading | 350Kg | 350kg |
| Long travel | 800mm | 800mm |
| Cross travel | 420mm | 420mm |
| Vertical travel | 420mm | 420mm |
| T-slot No. and size | 3×16 | 3×16 |
| Ram travel | 470mm | 470mm |
| Distance from spindle nose to table surface | 0-405mm | 0-405mm |
| Spindle hole taper | ISO40(V)
7:24(H) | ISO40(V)
7:24(H) |
| Sleeve Diameter | 85mm | 85mm |
| Spindle travel | 127mm | 130mm |
| Spindle speed | (standard): (shift grade) 50HZ: 66-4540(V) 60HZ: 80-5440(V)
50HZ: 45-980(H) 60HZ: 55-1180(H) |
| Auto. quill feed | (three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution | (three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution |
| Spindle motor(Vertical) | 3.75KW/5HP(380V)
2.2KW/3HP(220V)
Milling Head from Taiwan | 3.75KW/5HP(380V)
2.2KW/3HP(220V)
Milling Head from Taiwan |
| Horizontal motor | 3KW | 3KW |
| Head swivel | 90° | 90° |
| Head tilting | 45° | 45° |
| Dimension of package | 1516×1550×2250 | 1516×1550×2500 |
| G.W/set | 1450Kg | 1500Kg |
>>
