Hydraulic Paper Book Wire Sipral Machine

Product Description

Hydraulic Paper Book Wire Sipral Machine
★Brief introduction★
1) Forming different wires to sprial and binding into the book at the same time.
2) Changing mould and tooth picth can bind different specafication of wire.
3) Book binding and wire forming spiral finished at the same time.
4) After book bindingcompletely,both ends can cut off and close up automatically.
5) Books automatically drop into the coection tank after binding completely.
★Technical parameters★

Spiral forming and binding machine CWH-450
running size over 5/8" diameter machine needed special oder.
wire specification	1/4"-1"
max.binding width	450*530mm
min.binding width	130*85mm
max.binding thickness	20mm
working speed	800-1300books/hour
power source	220v 1ph 50hz
Machine dimension	900*1400*1200mm
weight	0.25t

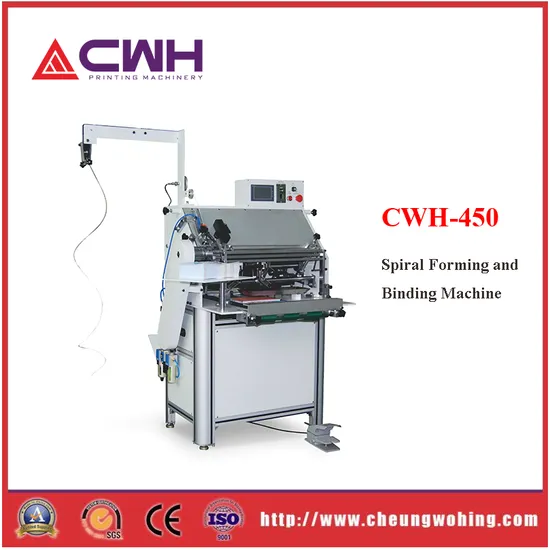

★Machine picture★

---
