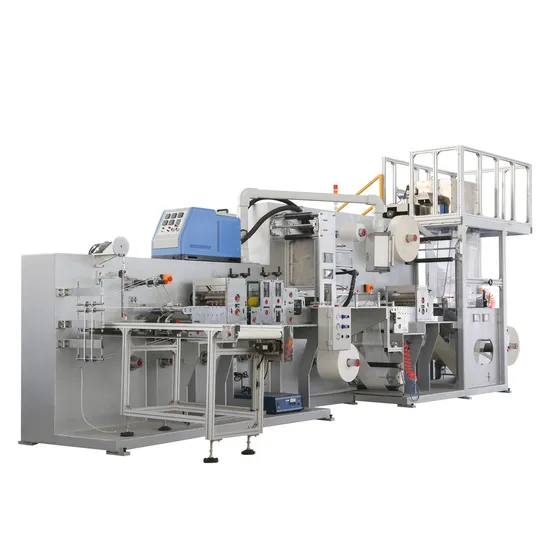

Abdominal Incision Dressing Pad Making Machine

Product Description

PERFORMANCE CHARACTERISTICS: Touch-control, PLC program control, replace only need to enter the length of the data can be extremely simple. Easy to operate. Adopts stepless control of the governor which can adjust the thickness and weight . The cotton core pattern repression does not fall off, clearly and firmly. The cotton core can be added to the polymer(SAP) quantitative add, weight adjustable. This machine is full servo motor control, the length of any adjustable, high precision. Cutting length 20-40cm TECHNICAL PARAMETERS: Power Supply:380V/50HZ Power:47kw(Include a hot melt glue machine) stable Speed:0-30m/min Dimension:6500*2500*3500mm Weight:4t Yung press:≥0.6mpa 1.2m³/min Products' Specifications:Width(100-200mm),Length(200-400mm) SAP weight:10-50g/m2 Wooden pulp weight:40-110g/m2 Automatic tension control Single SAP applicator Absorbent core preparation unit Absorbent layer cross cutting unit Hot melt gluing unit Finished products cutting unit
COFIGURATION INSTRUCTIONS:
1.5kg Hot melt glue machine :1set(Xinjia)
2.Full servo motor:10 sets (Delta)
3.Discharge air craft:5pieces(ALT)
4 Other Motor: (ALT)
5 Touch screen: 1set(Delta)
6. Motion Controller: 1set(delta )
7 .Low Voltage: Delixi or CHINT
8. Bearing: Harbin
9. Cylinder valve: ALT 10.Conveyor Belts: ALT
11.Cylinder :AirTAC
12.Timing belt: ALT
13.No material stop sensors: ALT
SPARE PARTS:
cutting blade:2pieces
Wrench:1set
Delivery time:100days

---
