Smart 3 in 1 Lathe Mill, CNC Drill Mill Lathe Solution

Product Description

-Engineered with robust Box guideways, this heavy-duty cutting component promises unparalleled strength and durability, ensuring precision and reliability in every cut.
-Featuring a distinctive 30-degree slanted one-piece bed structure, this design enhances rigidity, providing a stable and secure foundation for superior machining performance.
-Experience minimized thermal displacement with our Stabilized Unit Structure, crafted to maintain accuracy and consistency even under the most demanding conditions.
-Achieve seamless integrated processing with synchronized control of Main/Sub spindle (SY Type), revolutionizing your workflow with efficiency and precision.
--Engage in versatile multi-tasking operations with our wedge type Y-axis BMT turret, optimizing your machining capabilities like never before.
Boasting an impressive rapid traverse rate of 30m/min on the Z-axis, this feature guarantees swift and efficient movements, enhancing productivity.
-Designed with ergonomic precision, enjoy convenient access to both the chuck and tool, streamlining your machining experience.
Product Parameters

Item		Unit	HD3605	HD3605M
Capacity	Swing over bed	mm	Φ940
	Max. turning diameter	mm	Φ540	Φ520
	Max. turning length	mm	1,350	1,256
	Bar working diameter	mm	Φ102
Spindle	Max. spindle speed	r/min	2,000
	Spindle nose	ISO	A2-11
	Spindle through hole diameter	mm	Φ131
	Chuck size	inch	15"
	Main spindle motor power	kW	18.5/15
	Max. spindle torque for turning	Nm	540/440
Feedrate	Travel(X/Z)	mm	295/1350
	Rapid traverse(X/Z)	m/min	24/30
Turret	No. of tool stations	EA	12
	Tool size	mm	32/ Φ50	32/ Φ50
	Turret Index time	sec	0.2
Rotary tool Capacity	Collet size	-	-	ER40
	Tool holder mount type	-	BMT75
	Max. rotary tool speed	r/min	-	4,000
Tailstock	Quill bore taper	-	MT5
	Quill diameter	mm	Φ100
	Quill travel	mm	120
Machine dimension	Floor space	mm	4,195X1,978
	Height	mm	1,857
	Weight	Kg	7,200
NC	CNC System	-

Detailed Photos
ALL-IN-ONE TYPE OF BED
Optimal Structural Analysis
Through rigorous structural analysis, our design optimizes the machine's tool post body while lowering its height, ensuring the bed maintains dynamic rigidity even during intense heavy-duty cutting.
Additionally, the HD-SY Series boasts a 30-degree bed slope, providing a more stable and reliable machining process, enhancing overall performance.
Integrated Coolant Tank
Ingeniously designed with a front-mounted coolant tank, this structure offers enhanced convenience. Chips are efficiently removed from the machine's right side, streamlining maintenance.
Box Guideway
The HD-SY Series features Box guideways across all axes, delivering superior travel ability and exceptional vibration offsetting during heavy-duty cutting operations.
Sealed GIB Structure
The HD Series X-axis incorporates a sealed GIB structure to protect against turcite damage from chips, ensuring long-lasting durability and performance.
Rapid Traverse Rate(X/Y/Z/ZB)
Experience unmatched speed with the HD 3605Y/SY offering rapid traverse rates of 24/10/30/24 m/min across X, Y, Z, and ZB axes respectively.
Travel (X/Y/Z/ZB)
The HD 3605Y/SY provides comprehensive travel dimensions of 265/120/1350/1350 mm, accommodating a wide range of machining needs.
Mill Turret
Our BMT turret secures tools with four bolts and a key on the mounting surface, providing robust tool fixation for superior rigidity and precision.
Mill Tool Holder
Enhance your machining capabilities with the addition of straight and angular milling head tool holders for versatile side and I.D. operations.
BMT 65P(HD3605Y/SY)
Achieve remarkable speed with a maximum of 4000 r/min, ensuring rapid and efficient operations.
Optimize your tool performance with a collet size of ø20 (ER32), providing versatile and adaptable machining solutions.
Enjoy swift transitions with an indexing time of just 0.2 seconds per step, facilitating smooth and efficient machining processes.
Suzhou Wugan Intelligent Equipment Co., Ltd. excels in creating high-performance CNC lathes and turning centers, crafted with cutting-edge international technology. Our designs are characterized by high rigidity, precision, and productivity, paired with an exquisite appearance. We offer efficient, reliable cutting performance to meet customers' advanced requirements. Our mill-turn combined model can perform turning, milling, and drilling in one machine, boosting output capacity and versatile processing capabilities to satisfy diverse customer needs.

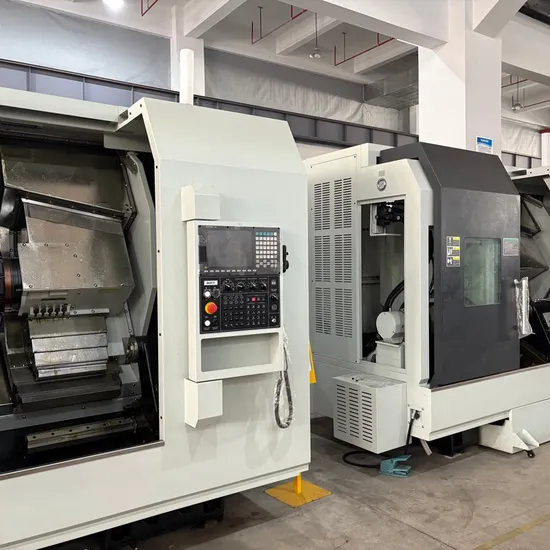

Manufacturing Workshop

---
