| US$1,176.00-1,485.00 | 3 Sets (MOQ) |
| Specification | |

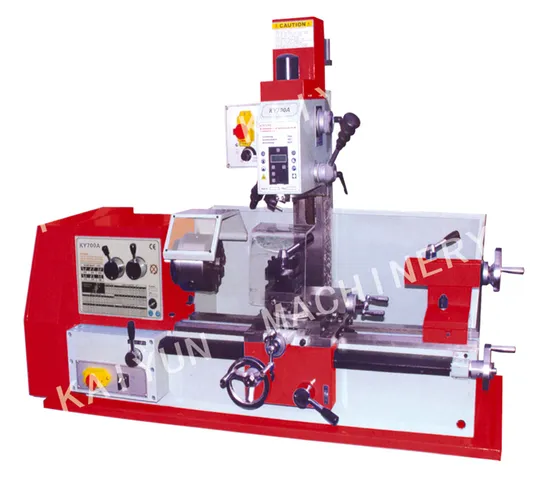

| Model No. | KY450A/KY700A |
| Height of center | 125mm |
| Distance between two centers | 450mm/700mm |
| Max.length cutting | 420mm/660mm |
| Max.Wwing ocer bed | 250mm |
| Max.swing over carriage | 130mm |
| Taper of spindle nose | MT4/27mm |
| Spindle speed range | 115-1620rpm |
| Metric thread cutting | 0.2-3.5mm(10 kinds) |
| Inch thread cutting | 8-56/1(20 kinds) |
| Moulder thread cutting | 0.1-1.25mm(10 kinds) |
| Range of longitudinal feed | 0.05-0.1mm |
| Drilling & Milling | |
| Taper of spindle bore | MT2 |
| Spindle stroke | 50mm |
| Range of spindle speeds | 50-2250rpm |
| Max.distance spindle to table | 280mm |
| Max.distance spindle to column | 170mm |
| Head tilt | ±90° |
| Motor | 500W |
| Packing size | 1270/1510*670*1100mm |
| Net weight | 180/200kg |
| Standard accessories | |
| Splash guard | 1 pc |
| Chip tray | 1 pc |
| Drawbar | 1 pc |
| Arbor | 1 pc |
| Toolbox & tools | 1 set |
| Optional accessories | |
| 4-jaw chuck | 1 set |
| Backplate | 1 pc |
| Follow rest | 1 pc |
| Steady rest | 1 pc |
| Face plate | 1 pc |
| Collet chuck | 1 set |
| Turning tools | 1 pc |
