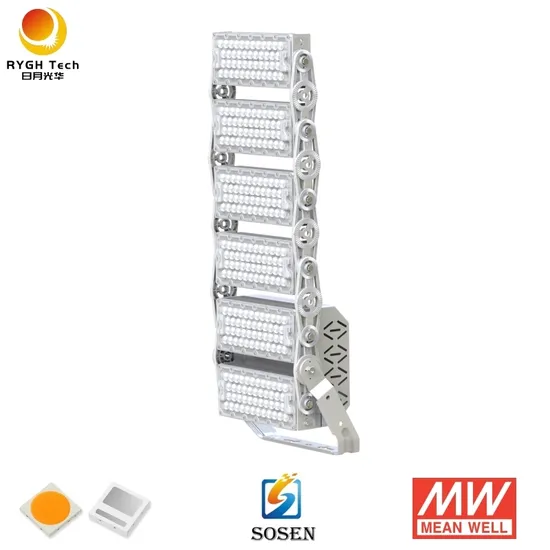

75000 Lumen LED Outdoor Flood Light 720W High Mast LED Stadium Light for Tennis Court 720W 240V Flood Light

US$281.09
100-999 Pieces
US$277.13
1,000-9,999 Pieces
US$273.29
10,000+ Pieces

Basic Info.

Model NO.
RYGH-EGL-720WA
Power
≥100W
Projection Distance
>35m
Application
Park, Square, Factory, Garden, Sports Stadiums
IP Rating
IP66
Certification
CE, EMC, LVD, RoHS
Operating Voltage
85-265V
Input Voltage
220V
LED Chips Brand
Epistar
Item
720W LED Flood Light
Input Power
720W
Lumen
160lm/W
Driver
China
LED Type
SMD 3030, 5050
Power Factor
>0.95
CRI
70ra
Beam Angle
20°.40°.60°.90°. 140*100°
Warranty
5 Years
Color
Silver
Operating Temperature
(- 30 ~ + 55 ) Degrees Celsius
MOQ
1 Piece
Transport Package
Export Standard Paper Carton
Specification
RYGH-EGL-720WA
Trademark
RYGH
Origin
Shenzhen
HS Code
9405409000
Production Capacity
50000 Pieces/Month

Product Description

EGL A LED Stadium Light Specifications
Features:
1, Pure aluminum plate material, three side ventilation design, good heat dissipation effect
2, Folding sheet process (patented technology), heat dissipation area 30% larger than similar products
3, A variety of different installation hardware, which can be quickly adjusted
4, Optical Polycarbonate Lenses provide high impact resistance IK08 and multiple lighting distributions: 20°.40°.60°.90°. 140*100°
5, Top brand LED chip and driver, ensure the product quality and lifetime
6, Integrated molding support design, surface anti-corrosion and rust prevention treatment, solid and durable
7, "L" Type bracket and thick arms, anti-typhoon rating 17
8, Luminous Efficacy up to 160lm/W, Lifetime 50,000H
9, Ingress Protection Rating: IP65/IP66
10, Operation Temperature: -35°-+50°
11, External 20KV SPD, provide extra surge protection

Model no.
RYGH-EGL-240WA
RYGH-EGL-360WA
RYGH-EGL-480WA
RYGH-EGL-600WA
RYGH-EGL-720WA
Rated power
240 Watt
360 Watt
480 Watt
600 Watt
720W
Input voltage
AC 85-305V, 50/60Hz
LED Chip
3030/5050 SMD
LED Driver
MEANWELL, INVENTRONICS, SOSEN, etc
Material
FIN AL+PC
CRI
70/80/90/95/98
Power Factor
>0.95
CCT
WW, NW, CW
Light efficacy
140-160LM/W
IP rating
IP65
IK rating
IK08
Operation temperature
-35~+50ºC
Beam angle
20°.40°.60°.90°. 140*100°
Warranty
5 Years
Life span
50,000 hours
Dimension
350*180*332mm
350*180*480mm
350*180*628mm
350*180*776mm
350*180*924mm
Packing quantity
1 piece/CTN
Net Weight
5.5KG
6KG
7.6KG
10.5KG
11.2KG
Gross Weight
6.2KG
7.8KG
8.5KG
11.5KG
12.4KG
Packing size
364 x 358 x 230mm
364 x 638 x 230mm
364 x 638 x 230mm
364 x 778x 230mm
364 x 938x 230mm
Certificate
CE, RoHs



Environment Requirement
Working Temperature:-35~+50ºC
Storage Temperature:-35~+50ºC
Working Humidity:0%~85%
Storage Humidity:0%~90%


Application:
It can be widely applied in Port, Wharf, Tower Crane, Golf Course, Football Field, Stadium etc.

Warning
1. Please install the lamp according to the installation to avoid dropping and electric shock.
2. Don't exchange the lamp as will to avoid dropping ,electric shock and damage of the lamp.
3. Working voltage is not to be exceeded AC100-305V 50/60Hz

Attention
1. Don't install the lamp to non-stable place.
2. Installed by qualified electrician.
3. Switch off the switch box and contact certified electrician if the lamp works abnormally

Warranty
5-year warranty since the date of purchase is offered for all LED flood Lights.
Warranty Terms
1. Under the terms of this warranty, if the product has a failure occurring under normal usage within warranty period, RYGH will provide free maintenance service based on the proof-documents and invoice (copy) of failure product.
2. RYGH will not provide paid maintenance service under conditions within warranty.
a. Failure or damage due to force majeure.
b. Failure or damage due to transport or unloading.
c. Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
d. Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, RYGH will not be responsible for any failure or damage in transportation if customer uses non-original packing or improper packing.
4. RYGH reserves the right for final explanation of aforesaid terms.
Caution: RYGH will not be responsible for any other failure or damage by incorrect usage.
Packing&Shipping:

Company Information:
Shenzhen RIYUEGUANGHUA Technology Co., Limited is a professional LED light manufacturer for 8 years,
which is specializing in researching, designing, manufacturing and exporting LED industrial and commercial lighting. "Honesty is the best policy" is the spirit of our company.
We are driven by the satisfaction of our customers. All of our productsare made of top quality materials and all of
our production is under strict supervisory control, and all products are fully inspected during all process.
Clients would be put in the first place for consideration all the way.
Prompt replies and strict lead-time from RIYUEGUANGHUA would make perfect services possible.
Our LED Lighting Projects:
Our LED Lighting Solutions:
FAQ: Q1:What is the warranty for your lights?
A1:For the lights,we have 3 years warranty, some products 5 years warranty.

Q2:How do you ensure the quality?
A2: We get three QC processes:1.For raw materials;2.During the half of production; 3.Final QC test one by one after aging 12 hours.

Q3:How to do if any quality problems on your side in the warranty time?
A3: First, take pictures or videos as proof and send to us.We will replace new ones for free.

Q4:OEM OR ODM accepted?
A4:Yes,we can do OEM & ODM,logo on the light or package both are available.

Q5: How many days will samples be finished?And how about the mass production?
A5: Generally 1-7 days for samples making. The leading time of mass production will depend on the quantity.

Q6:What is your trade assurance?
A6:100% product quality protection 100% product on time shipment protection 100% payment protection for your covered amount.
