Product Details
Product Description
Product Description
Wire material range: Φ3.5 - 4.5mm double-core wire.
Cable processing range: 150 - 10000mm (customizable).
Output: 6s/pcs.
Crimping capacity: 30KN.
Power supply: 220V 50/60Hz.
Air source: 0.5Mpa - 0.7Mpa, 10m3/h.
Weight: about 5000kg.
Overall dimensions: 8500×1100×2400mm.
Detection capabilities: pay-off detection, cable angle detection, pressure detection, air pressure detection, visual appearance detection, etc.
Applicable mold range: European molds, pneumatic molds.
Functions: pay-off and zero-cutting, stripping outer skin, wire visual detection, angle adjustment, shielding ring crimping, semi-stripping, flipping shielding wire, arranging shielding wire, cutting and stripping inner insulation, crimping center pin, crimping outer conductor, coaxial visual detection, etc., NG analysis and treatment (customizable according to requirements), take-up (customizable according to needs).

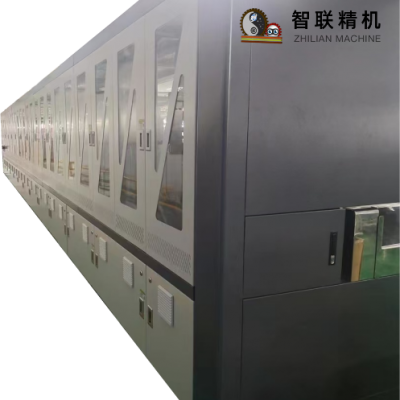

Fully automated equipment can be customized according to customer samples
>>
