ASTM A53 Stainless Steel Pipe Mill Equipment 120m/Min

Product Description

Product Description

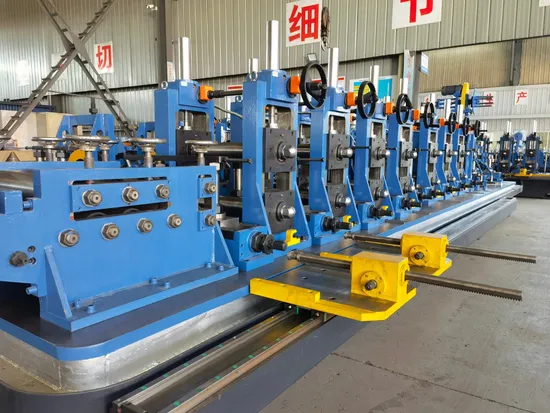

ZY-219 API line pipe, casing pipe, ASTM A 53 steel pipe milling machine
1:Summary
The steel pipe production line is designed for the round pipe, the rectangular and square pipe by material of cold/hot-rolled coil etc. It could be used at the metallurgy, construction, transportation, machinery, automobile industry. Adopting "W" forming type, it could make much more reasonable force, and much more perfect forming shape at each stand etc

2: Applicable material
(1)cold-rolled steel strip
(2)Material: Low-carbon steel, low alloy steelδs≤345Mpa,δb≤610Mpa
(3)The thickness of steel strip: 2.0-8.0mm
(4)The width of steel strip: 280-690m
(5)I.D. of steel coil: Φ450-Φ610mm
(6)O.D. of steel coil: Φ800-Φ2100mm
(7)Maximum weight coil: 12000kgs

3: Dimension range of processing steel pipe
(1) O.D.: Φ88.9-Φ219mm
(2)Wall thickness: 2.0mm-8.0mm
(3)Length: 4-12M
4: Production process table

Product Parameters
5: Pipe machine specification
Accordingly to the market demands.
We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.

Pipe machine Specification
Mill Model	OD range (mm)	Thickness range(mm)	Line Speed(m/min)
ZY-16	7.6-16	0.3-1.0	120
ZY-20	10-25.4	0.3-1.5	120
ZY-32	12.7-38.1	0.6-1.8	120
ZY-45	16-50.8	0.7-2.0	110
ZY-50	20-63.5	0.8-3.0	90
ZY-60	25.4-76.2	1.0-3.2	80
ZY-76	31.8-88.9	1.2-3.75	80
ZY-89	33.4-101.6	1.2-4.5	75
ZY-125	50.8-130	2.0-5.0	60
ZY-165	76.2-168	2.0-6.0	50
ZY-219	88.9-219	2.0-8.0	50
ZY-273	89-273	3.0-12.0	40
ZY-325	89-325	3.0-12.7	40
ZY-406	114-406	4.0-16.0	40
ZY-508	219-508	4.0-19.1	40
ZY-610	273-610	4.0-19.1	40
ZY-660	273-660	4.0-22	40

Our Company
Zhangjiagang Zhongyue Metallurgy Equipment Technology Co.,Ltd is located in Xiangshan Road,Jiangang Town,Zhangjiagang City,Jiangsu Province,China.With the registered capital of RMB20,000,000 yuan,the company specialize in manufacturing high-frequency precision welded pipe lines,H-Beam steel pipe line,slitting machine,cold roll forming machine,cold rolling machine,angle steel machine,cold cutting saw machine etc...At present,the annual production capacity is more than 150 sets.
During more than ten years of continuous effective development, the company has already become quite well competitive in term of market share,technology,human resources and geographical location in its field.To maintain its competitiveness in the ever fierce competing market, the company has kept upgrading itself by improving innovation system ,establishing human resources platform, building harmonious relationship with customers,improving quality of product and full-range of services.Hence,now,as one of the most popular and favorite vendors of our customers,we are the most advanced and play a leading role in field of domestic market for product quality and achievement in new products R&D and market development.
The company products are widely applied in the industries of welded pipe manufacturing,sports products,fitness equipment,medical apparatus and instruments,children's goods,furniture,household electrical appliances,vehicles,ship building,petroleum transportation and power station etc...

---
