CE & ISO9001 Metal-Forming Tools Vmc855 CNC Duplex Milling Machine

Product Description

TH-1000NC CNC duplex milling machine/Double sides milling machine automatic milling
Main Function:

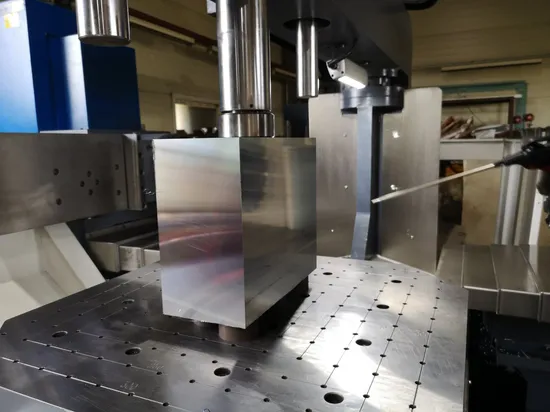

CNC system once setting and automatic guides where work-piece loading place, automatic measurement, four- sides process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.

Main Specifications of CNC DUPLEX MILLING MACHINE TH-1000NC
Items	Name	Specification
GooDa CNC DUPLEX MILLING MACHINE TH-1000NC		TH-1000NC
Cutting capacity	Control axis number	4
	Cutting capacity mm	2*1.5
	Cutting width mm	100-1000
Worktable	Dimensions mm	600*600
	Max loading weight kg	2800
Spindle	Spindle speed(Infinitely variable speeds) rpm	50-500
	Spindle power kw	2*15
	Spindle taper	NT50
	Cutting diameter mm	300
X axis	X/Y/Z axis motor power kw	2.5/2.5/3.0
Y axis	X/Y/Z Max feed speed m/min:	10000/10000/10000
Z axis	X/Y/Z Max cutting speed	8000/8000/8000
Accuracy	Squareness mm/300mm	0.015
	Accuracy for dimension mm/300mm	0.015
Tank capacity	Hydraulic oil tank L	60
	Lubrication oil tank L	3
Power	Power	AC380V/200 80KVA
Net weight	Machine net weight KG	13000

Main part of CNC DUPLEX MILLING MACHINE TH-1000NC

Sort	Name	Quantity	Origin	Remark
Machinery	Worktable ball screw	3	Taiwan HIWIN	Steady transmission,High accuracy, Wear-proof
	Guide rail	3	Taiwan HIWIN	Good bearing Strong stability
	Main Spindle (Horizontal)	2	Taiwan POSA	Low noise, high strength, Taiwan famous brand
	Flexible stainless steel plate shield of worktable	2	Domestic	High strength, Strong durability, dust-proof, Protect the guide rail and ball screw.
	Base casting	1	HT300	Good stability, excellent wear-ability
	Automatic lubricating machine	3	Domestic	Electronic-self-lubrication, Quantitative oil supply to the each part
	Oil line	3	Domestic	Copper tube
	Bearing		JAPAN NACHI	World famous brand, High accuracy, High quality
Electrical appliances	CNC system	1	Japan FANUC	Top brand of CNC
	Servo motor	4	Japan FANUC	Top brand of CNC
	High precision rotary table	1	Taiwan Central Star	Taiwan famous brand, High accuracy
	Spindle motor	2	CTB/MK	Multitronic, Meet the requirements of different processing speed
	AC contactor		Schneider-	Famous brand, steady property
	Relay		Schneider-

Duplex cnc milling machine ,made in china,gained 38 patent certifications
12 years experience, 3years guarantee.
high efficiency, high accuracy , high quality.
GooDa CNC series milling machine are your best choice!
Contact me:
International technician,sales& Service:
Dongguan GooDa Machinery Manufacturing Co.,Ltd
Address: No.137, F Building Kairuifeng Industial Park, Changdong RD,Banshi Village,Changping Town, Dongguang City, GD, China
Website: http://goodacnc.en.made-in-china.com

---
