Refrigeration Wire Steel Bundy Tube Cooling Condenser for Freezer

Product Description

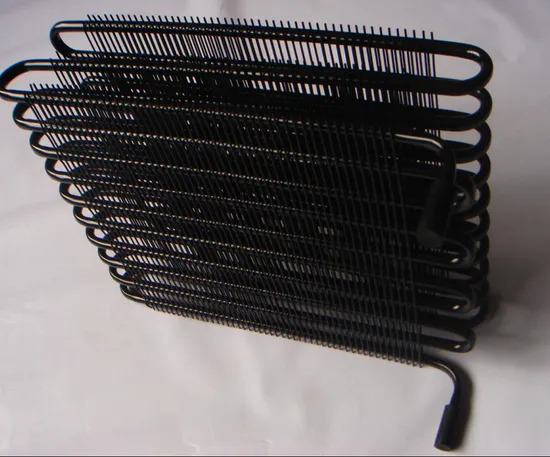

Refrigeration Wire Steel bundy Tube cooling Condenser for Freezer
Wire on tube refrigerator condenser, freezer condenser, water cooler condenser
Technical Parameter:
1) Material:
A) Bundy tube (steel tube coated with copper): 4.76x0.7mm, 6x0.7mm, 6.35x0.7mm, 8x0.7mm
B) Low carbon steel wire: 1.0-1.6mm (both sides can be with steel plates and brackets; Can be upon your option)
C) Bracket: Steel plate (SPCC), thickness 0.6-1.5
2) Structure: Bundy tubes welded with steel wires
3) Painting: Cathode Electrophoretic Painting is also available
WE can supply the products according to clients' drawings or samples, also can help the clients design and produce different condnesers.

MODEL	SPECIFICATION	ROWS	A SIZE(L*W)	B SIZE(L*W)
BRCD-01	4U	8	360*430	360*485
BRCD-02	5U	10	460*430	460*485
BRCD-03	6U	12	560*430	560*485
BRCD-04	7U	14	660*430	660*485
BRCD-05	8U	16	760*430	760*485
BRCD-06	9U	18	860*430	860*485
BRCD-07	10U	20	960*430	960*485
BRCD-08	11U	22	1060*430	4060*485
BRCD-09	12U	24	1160*430	1160*485

---
