Product Description
Product Description

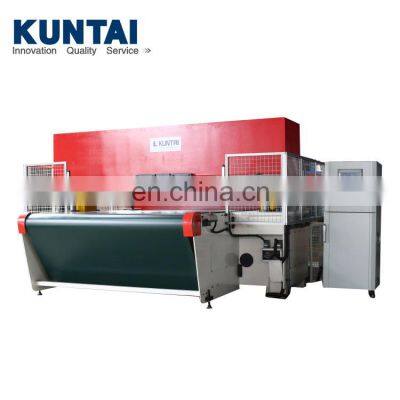

Automatic Belt Hydraulic Fabric Cutting Machine
Automatic Conveyor Belt Feeding
Hydraulic Leather Die Cutting Machine
Conveying Belt Type Traveling Head Cutting Machine
Product Description
USAGE AND APPLICATION
1. This movable head cutting machine is designed for large plants to continuously cut non-metal materials(such as leather, rubber and cloth) in large batch with the help of molding cutting die.
2. Use PLC computer touch screen to control procedures, servo motor driver conveying system, insure feeding accurate range, with stable running speed.
3. The main machine is controlled by four-column guiding, double-crank balancing, four-column blocking fine-adjustment mechanism and hydraulic control system, which can guarantee the speed and accuracy of die cutting machine.
4.All movable connecting parts are equipped with central oil supply automatic lubricating device, which can raise abrasive resisitance.
5. The input and output of materials are conveyed on the conveying belt, and the die cutting of materials is also automatically completed on the conveying belt.
6. A safety light curtain can be optionally provided for the inlet and outlet of the machine's cutting zone in order to ensure operator's personal safety.
7. A photoelectric pneumatic deviation rectifier is used to ensure accurate operation position of conveyor belt.
8. Cutting die fixed on a movable head can accurately move leftward and rightward when controlled by a servo motor.
9. Products of special specifications can be customized.
MAIN TECHNICAL DATA(CUSTOMIZABLE)
Model
| KTC/S
|
Maximum Cutting Force
| 40T
| 50T
|
Cutting Area
| 1600*500mm | 1600*700mm |
Motor Power
| 4.0KW
| 5.5KW
|
| Tension Distance | 25-175mm | 25-175mm |
Travel Head
| 500*500mm
| 700*700mm
|
Machine Details:
Inner Package: Protective Film, etc
Outside Package: Plywood Case
Machines well packed with protective film and loaded in plywood case or export container;English version operation manual and technical data;One-Year-Period wear parts;Tool kit
FAQ
1. Are you a trading company or a manufacturer?
We are a manufacturer with strong export capability.
2. Where is your factory?
We are in Yancheng city, three and a half hours' drive away from Shanghai, China.
3. Do you have individual research and development department?
Yes, we have. We believes in technology and market oriented research. Every year, we will work out a number of solutions to actual onsite application problems and develop brand new machines for our customers.
Shoud you have any new ideas about our machines, pls feel free to contact us! We are sure to make your ideas into designs. Our goal is to work together with our customers to solve every onsite problems, to realize better material finishing/processing effect and to be our customers' think tank.
4. How can I trust your quality?
We have CE and ISO certificates. They enhance quality control throughout the manufacturing of our machines.We have professional QCs. For each step of our machine production, there will be a team of QCs responsible for the inspection. Until the item passes all the inspections can it go to the following step.At the end of the machine assembling, a series of testings will be conducted. Unless the machine passes all the testings, we will not make delivery.We guarantee our machines with one-year warranty. Usually, our customers use our machines for 5 years, 8 years and even 10 years.Throughout the lifespan of our machines, the spare parts replacement will be at cost price.5. How to operate the machine? We have not used such a machine before. We just want to expand our business and start a new line.
Pls do not worry! Almost 50% of our overseas customers were in the same situation when buying first of our machines. We have skillful and experienced follow up service staff who have worked out a whole package of solutions catering to the need of our customers like you. Besides, we have a team of technicians available for overseas machine installing, testing and operation instruction.
