Co H2s O2 Single Gas Portable Detector with IP68 Explosion Grade

Product Description

Product Overview
MiniMeta is a maintenance-free single gas detector that is the most reliable, user-friendly, and cost-effective detection solution to ensure worker safety and operational compliance. It provides up to 2 years of protection - no calibration, no sensor replacement, no battery replacement or battery charging required. • Ultra-high beep alarm sound, 2 bright red LED up and down alarms, triple alarms of sound, light, and vibration; automatically records the 10 most recent alarm events for easy and accurate record keeping; Splashproof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design; Small size, light weight, easy to carry. At the same time, it has obtained three explosion-proof certifications of IECEX, ATEX, and China explosion-proof, with an explosion-proof level of Ex ia IICT4 Ga/Ex ia I Ma, which can be used in Zone 0 and Zone 1 at the same time. The protection level reaches IP66/IP68. Optional docking station to realize fast bump test.
Product Advantage
1. IP68 water- and dust-resistant case.2.Low power consumption with 2 years standby time,no need battery charge and calibration.3.With Single /multi unit docking station to perform daily bump test and calibration (Optional)4.With event and data logging function(optional)5.With self-test function, which can improve safety by automatic self-test6.Small size, light weight and with back clip for easily carry.7.95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm8.Real time value, TWA, STEL, MAX,MIN multiple numerical display

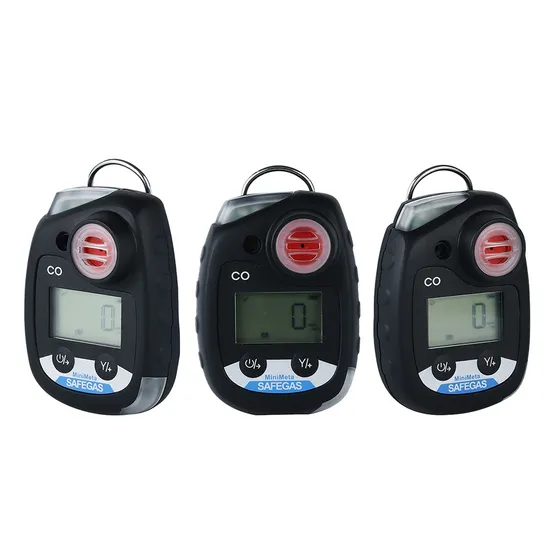

Product Picture

Detailed Photos




















Product Parameters
Product Specification

Detect gas	Can be customized
Sensor type	Electrochemical ( Honeywell, CITY brand sensor)
Sampling method	Diffusion
Measure range	Can be customized
Resolution	Can be customized
Precision	≤± 3% F.S.
Response Time	≤30s(T90)
Unit	PPM
Display	Gas name, concentration unit, measured value, electricity
Alarm mode	Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type	Low alarm, high alarm, STEL, TWA, low battery
Display	LCD Display
Operating language	Chinese/English
Size	90*60*33mm
Weight	125g
Working Temperature	-20ºC~50ºC
Working Humidity	0-95%RH
Working air pressure	86~106kpa

Product Application
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations

Standard
1) Portable gas detector 1 piece
2) Calibration cap 1 piece
3) User manual 1 piece
4) Certificate of conformity/ Warranty card 1 piece

Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service

Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.


Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H



Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.



Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.



FAQs
Q1: What is a gas detector?
A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.

Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.

Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.

---
