Lengthened and Heightened Wood Chipper 500kg with Self Feed System

Product Description

* The minimum order quantity is 5 units.
Indicates that an order requires a minimum order quantity (which can be different models or types), not a minimum order quantity of 5 units for that model
Product Description

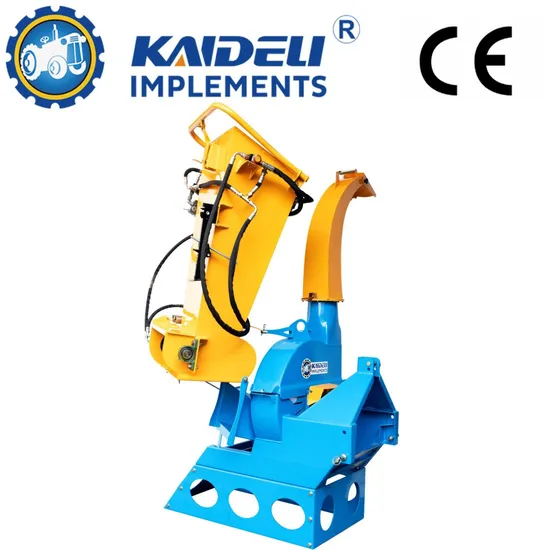

Uses:BX62RL Extended Wood Chipper is driven by tractor PTO, suitable for tractors with 40-100HP, with CAT I & II 3-point-linkage, wood is automatically fed by hydraulic roller through the feeding hopper, and on the flywheel install 4 knives, rotate at high speed to cut wood, and finally discharge through the discharge hopper, the diameter of the broken wood can reach up to 150mm.Features:1. The hydraulic rollers automatically feed the wood, which can be fed and returned by the reversing handle2. Emergency stop valves are installed on the top, left and right of the hopper, and the oil circuit can be cut off in time through the emergency stop button, which is safe and stable
3. The feed hopper is foldable for easy transportation4. The discharge hopper can be rotated 360°, which is convenient and quick5. The feeding hopper is lengthened and heightened, and feet are installed at the bottom to improve work efficiency and ensure safety and stability

Product Parameters

MODEL	BX62RL
Weight	500KG
Cutting Diameter	150mm
Cutting Efficiency	8-12m³/h
Linkage Type	CAT 1&2
Tractor HP	40-80HP
NO. of Knives on Flywheel	4
NO. of Knives on Machine	1
Dimension of Hopper	670mm*480mm
Diameter of Flywheel	750mm
Thickness of Flywheel	20mm
Feeding Style	Hydraulic

Detailed Photos
